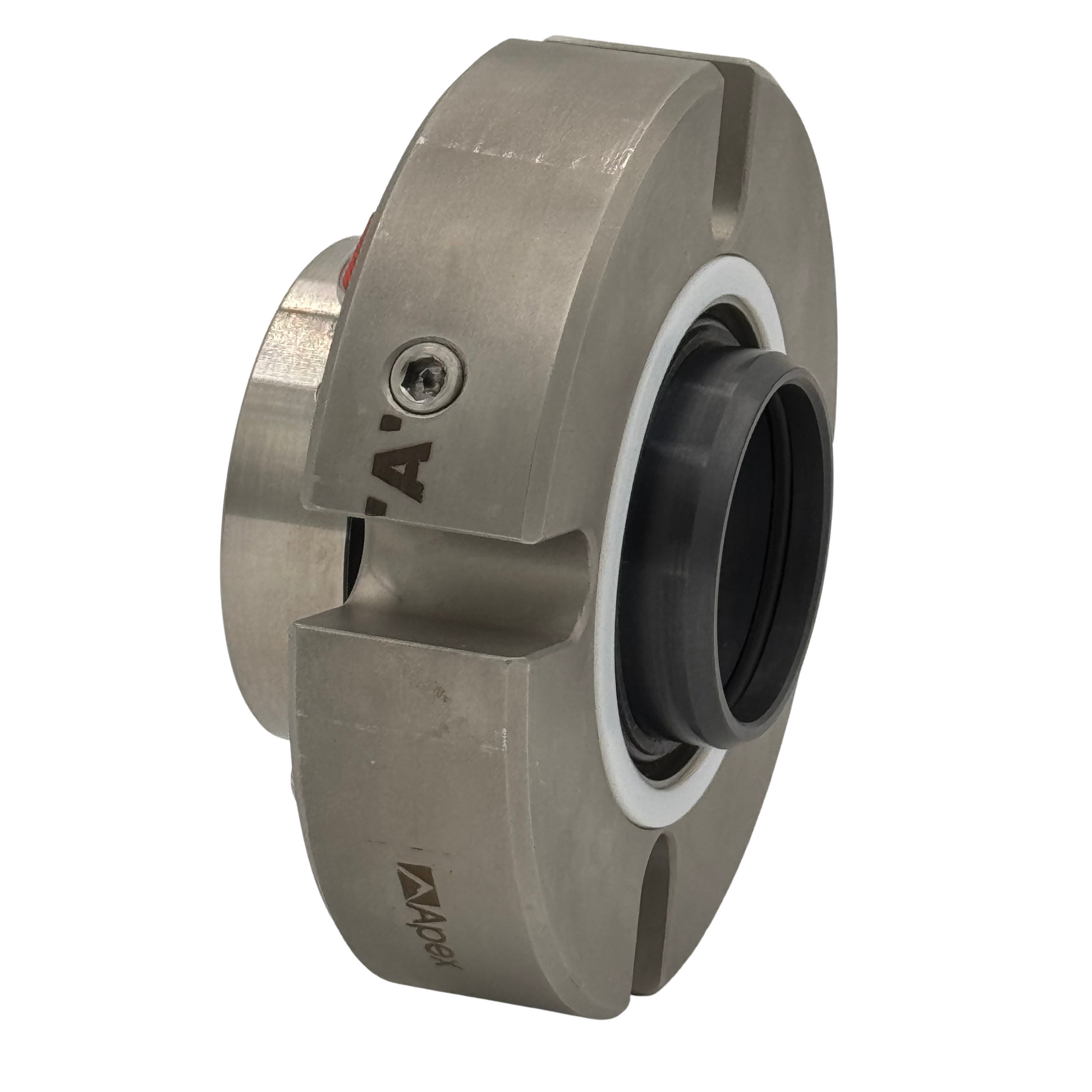

Triple Lip Cartridge Seal | WG3

Triple Lip Cartridge Seal | WG3

View Specifications

Need Help? Call 888-730-2739 or 802-524-7100

Features & Benefits

  • Combination of Hiflon™ dynamic lips, silicon carbide sleeves and unique grease compound eliminates “Start-up Seal Stick”
  • Thick sleeve cross section for added strength
  • Stainless steel outboard bushing reinforces silicon carbide sleeve and allows for shaft O-ring change out without pump disassembly
  • Can tolerate large amounts of radial runout (.030” / 0.8 mm) and axial float up (.125” / 3.2 mm)
  • Clasp O-ring ( Aflas or Kalrez standard ) loads and reinforces the primary lip throughout the seal’s life
  • Available in back to back and tandem modes for critical applications with API Plan 54/53/52
  • Available in a variety of metallic contact materials: SS316, Alloy-20, Hastelloy C276/ C22 & Titanium.
  • Self-aligned design for easy installation.
  • Bi-directional capability.
  • Specially formulated grease for reliable lubricant film at the lip to sleeve contact point.
  • Site repairable (kits available).

Standard Materials of Construction

  • Dynamic Lips: HiFlon™
  • Sleeve: Sintered Silicon Carbide (standard); 316 SS with Hardened Coating
  • Metallurgy: 316SS, Alloy 20, Hast C 276, Titanium
  • Reinforcement Bushing: 316SS
  • Clasp O-ring: Aflas, PTFE Encapsulated, or Perfluoroelastomer
  • Elastomers: FKM, PTFE Encapsulated

Operating Limits

  • Pressure: Up to 10 BAR (150 psi)
  • Temperature: -53° C to 149° C
  • Specific Gravity: >0.5
  • Surface Speed: 15 m/s
  • Maximum Runout: 0.8mm
  • Axial Motion: +/- 0.125"
  • Viscosities: Up to 500,000 cp
