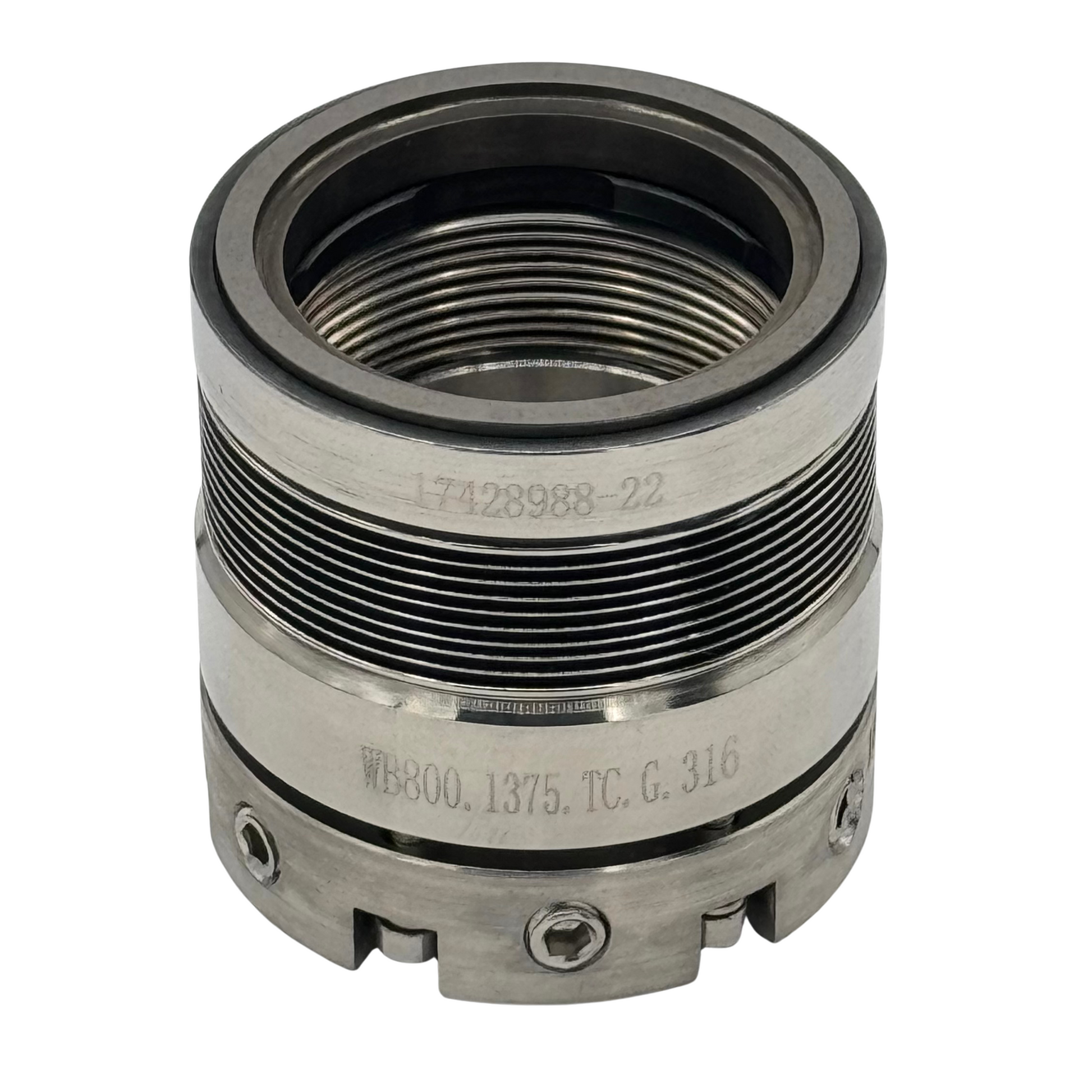

High Temperature Welded Bellows Component | WB800
High Temperature Welded Bellows Component | WB800
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Static Grafoil packings - No "O" rings
- Temperatures up to 800° F (405° C)
- Alloy 42 face retainers - faces are contained without metal expansion
- Self cleaning plates
- Face lubrication enhanced by even face loading
- Balanced Design - 300 PSI without modification
Standard Materials of Construction
Standard Materials of Construction
- Faces: Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Secondary Packing: Grafoil
- Metallurgy: Retainer: Alloy 42; Core: Heat Treated AM 350; Hub: 316SS; Housing: 316SS
Operating Limits
Operating Limits
- Pressure: Up to 300 PSI / 20 Bar
- Temperature: to 800° Fahrenheit / to 405° Celsius*
