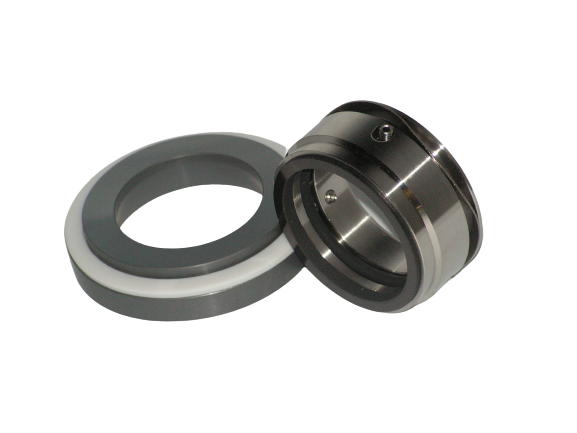

Sanitary Outside Seal | SAN7
Sanitary Outside Seal | SAN7
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Wave spring design
- Easy wash down for sanitary applications
- Quick installation
- Rugged inserted seal face
- Tapered ID stationaries available for wash down access
- FDA approved materials available
- Compact size for tight seal areas
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Silicon Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM, Kalrez®, Chemraz®
- Metallurgy: 304, 316, Monel, Hastelloy C®, Alloy 20
Operating Limits
Operating Limits
- Pressure: Up to 150 PSI
- Temperature: -40°F to +400°F
