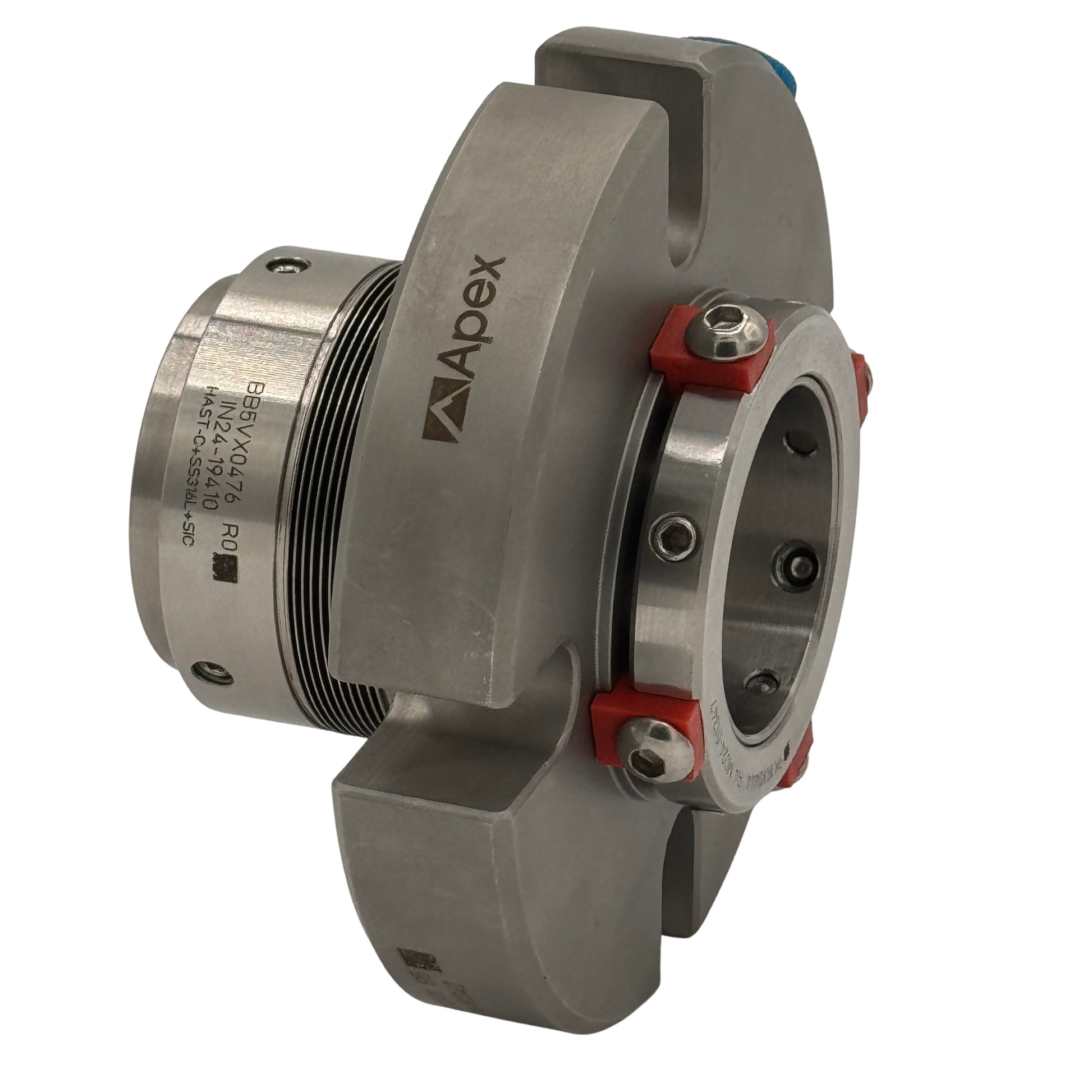

Welded Bellows Cartridge | S1WBC
Welded Bellows Cartridge | S1WBC
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Easy cartridge installation
- Static "O" rings - No shaft fretting
- Universal gland design conforms to most common bolt circles
- Fits all ANSI pumps without modification
- Self cleaning plates minimize clogging
- Face lubrication enhanced by even face loading
- Balanced design - 300 PSI without modification
- Fits into narrow cross section pumps
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon, Tungsten Carbide, Silicon Carbide, Antimony Carbon
- Elastomers: Viton®, Buna, PTFE, Neoprene, EPR, Kalrez®, FEP, AFLAS®, Teflon Jacketed Viton
- Metallurgy: 316 SS, Hastelloy C, AM 350, Titanium, Alloy 20
Operating Limits
Operating Limits
- Temperature: From -100° to 400° Fahrenheit* / 73° to 205º Celsius (depending upon elastomer)
- Pressure: Up to 300 PSI / 20 Bar
