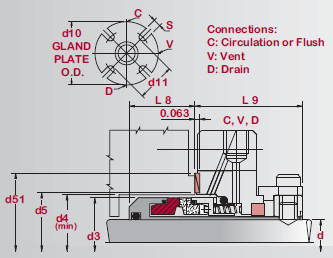

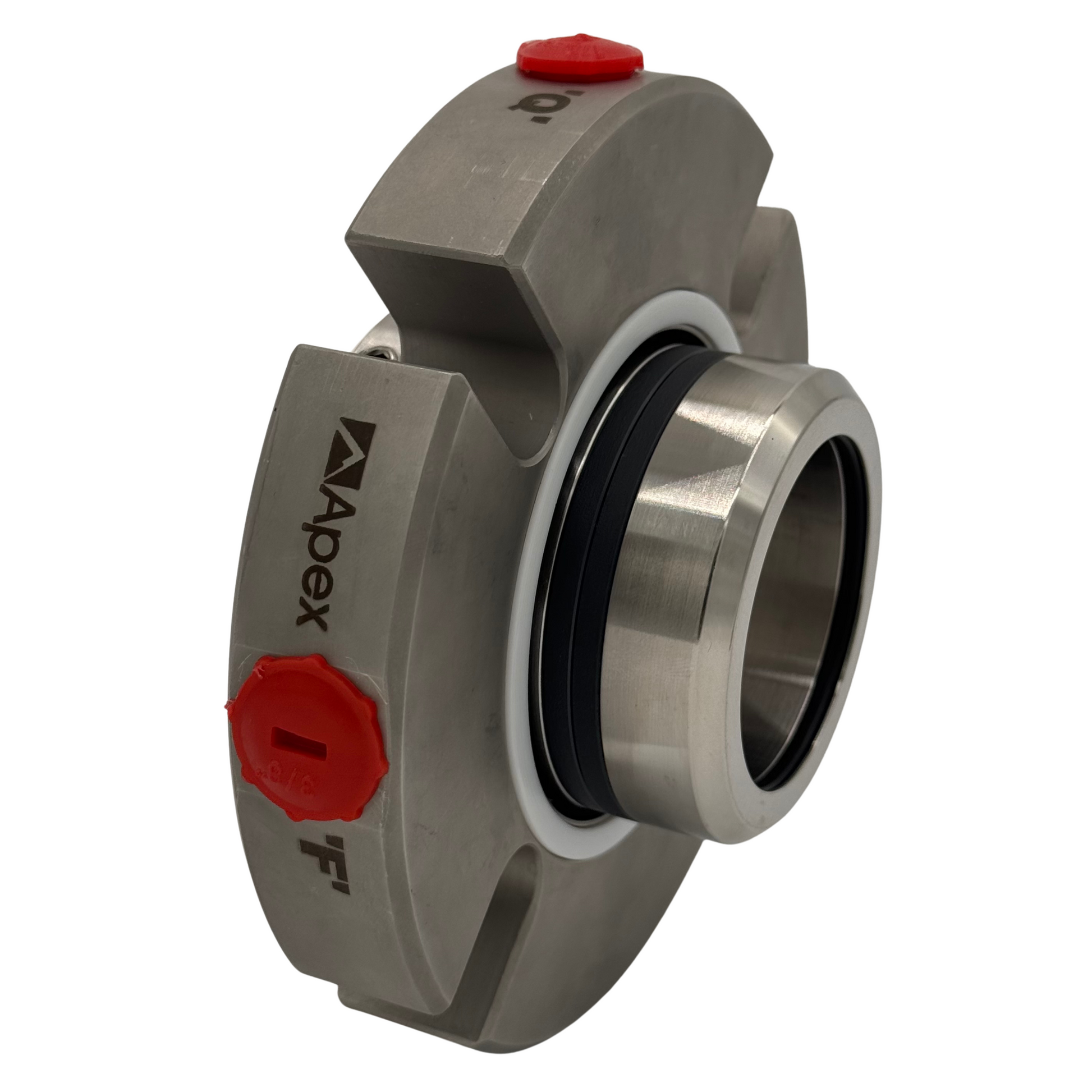

Single Cartridge with Circulation, Vent and Drain Gland | S1CVD

Single Cartridge with Circulation, Vent and Drain Gland | S1CVD

Need Help? Call 888-730-2739 or 802-524-7100

Features & Benefits

  • Incorporates circulation, vent, and drain gland for quenching and safety
  • Throttle bushing standard
  • One of the industry's most aggressively priced stationary cartridges
  • Easy cartridge installation
  • Stationary multiple spring design with circulation, vent, and drain connections
  • Springs isolated from product
  • Rugged face design
  • Identical seal face shapes make repairs easy and economical
  • Hydraulically balanced design
  • Handles pressure reversals and vacuum
  • Big Bore gland alternatives
  • Interchangeable parts with D2 dual cartridges
  • User-friendly setting clips
  • Confined gland gaskets

Standard Materials of Construction

  • Faces: Carbon / Silicon Carbide, Silicon Carbide / Silicon Carbide (Note: Tungsten Carbide and Antimony Carbon available)
  • Elastomers: Viton*, Buna, PTFE, Neoprene, EPR, Kalrez*, AFLAS*, Chemraz*
  • Metallurgy: 304, 316, Monel, Alloy 20, Hast B+ C*
  • Throttle Bushing: Bronze

Operating Limits

  • Pressure: Up to 250 PSI / 17 Bar
  • Temperature: -40° to 425° F (-40° to 235° C)
