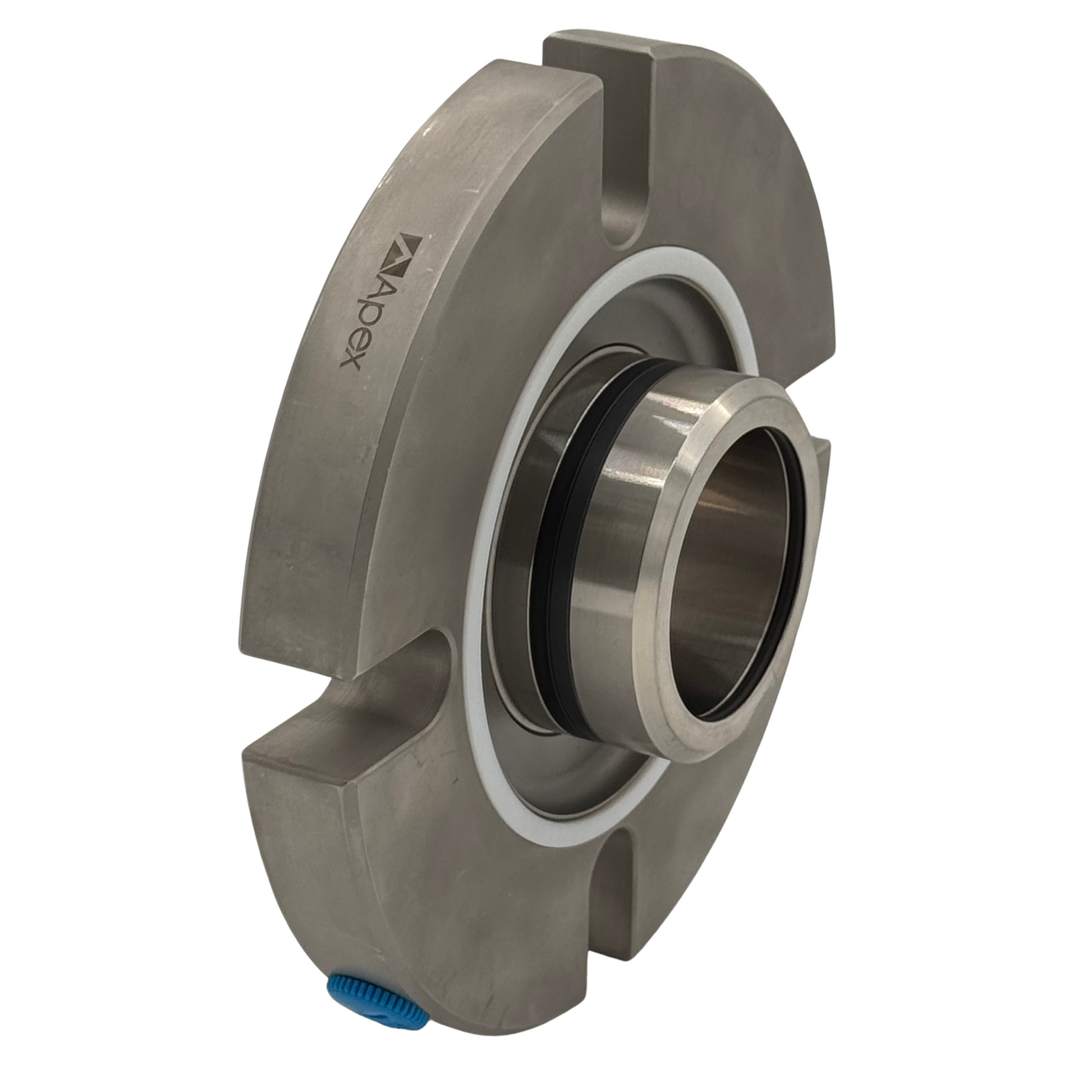

Big Bore Single Cartridge | S1BB
Big Bore Single Cartridge | S1BB
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Enlarged gland to fit standard Big Bore pumps
- Easy cartridge installation
- Stationary multiple spring design
- Springs isolated from product
- Rugged face design
- Identical seal face shapes make repairs easy and economical
- Hydraulically balanced design
- Handles pressure reversals and vacuum
- Flush connection standard
- Vent and Drain connections available upon request
- Interchangeable parts with D2 dual cartridges
- User-friendly setting clips
- Confined gland gaskets
Standard Materials of Construction
Standard Materials of Construction
- Faces: 316 SS, Alloy 20, Silicon Carbide / Silicon Carbide (Note: Tungsten Carbide and Antimony Carbon also available)
- Elastomers: Viton*, Buna, PTFE, Neoprene, EPR, Kalrez*, AFLAS*, Chemraz*
- Metallurgy: 304, 316, Monel, Hast B+ C*, Carbon / Silicon Carbide
Operating Limits
Operating Limits
- Pressure: Up to 250 PSI / 17 Bar
- Temperature: -40° to 425° F (-40° to 235° C)
