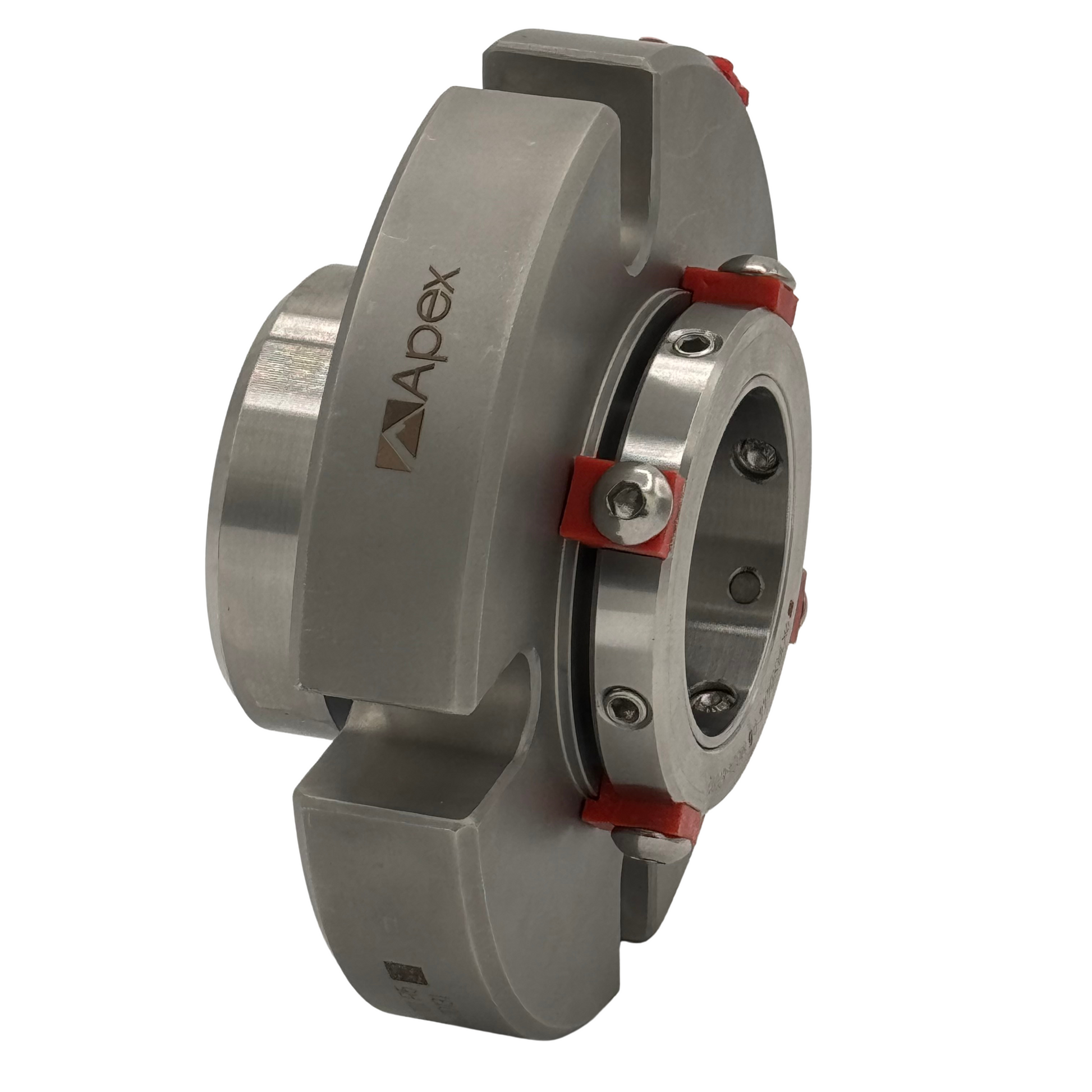

Single Cartridge with Flush | S1
Single Cartridge with Flush | S1
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
The S1 Single Cartridge has become the cornerstone product for Apex Sealing. Since it’s introduction, our goal has been to offer a rugged, well designed stationary multiple spring cartridge at a price that aggressively competes with the older mass produced rotating spring designs.
The success of the S1 has far surpassed our expectations. The seal has allowed both Apex and it’s customers to reach new plateaus of durability, end user satisfaction and profitability.
- One of the industry's most aggressively priced stationary cartridges
- Easy cartridge installation
- Stationary multiple spring design
- Springs isolated from product
- Rugged face design
- Identical seal face shapes make repairs easy and economical
- Hydraulically balanced design
- Handles pressure reversals and vacuum
- Flush connection standard
- Vent and Drain connections available upon request
- Big Bore gland alternatives
- Interchangeable parts with D2 dual cartridges
- User-friendly setting clips
- Confined gland gaskets
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon / Silicon Carbide, Silicon Carbide / Silicon Carbide (Note: Tungsten Carbide and Antimony Carbon also available)
- Elastomers: Viton*, Buna, PTFE, Neoprene, EPR, Kalrez*, AFLAS*, Chemraz*
- Metallurgy: 304, 316, Monel, Alloy 20, Hast B+ C*
Operating Limits
Operating Limits
- Pressure: Up to 250 PSI / 17 Bar
- Temperature: -40° to 425° F (-40° to 235° C)
