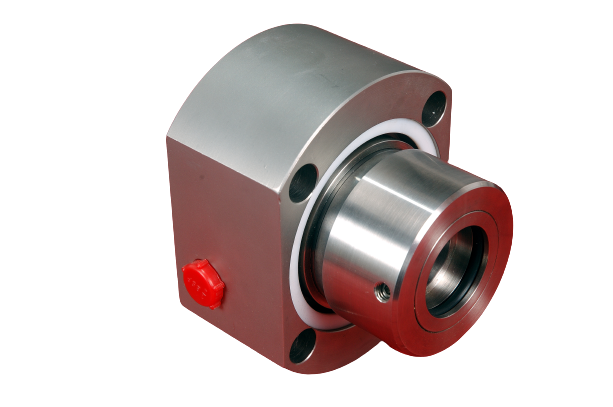

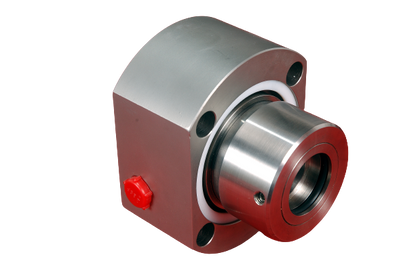

Heavy Duty High Pressure Cartridge | HDS
Heavy Duty High Pressure Cartridge | HDS
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Fits standard Big Bore pumps
- Heavy-duty construction
- Can replace double seals in many applications

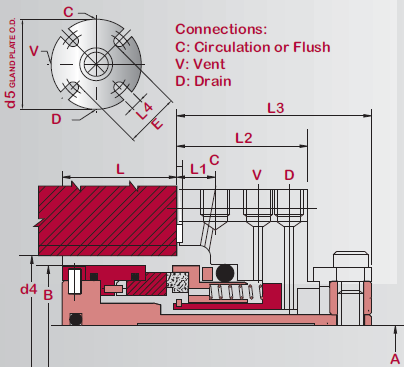

- Flush, Quench, and Drain standard
- Guided Quench
- Large radial clearances to allow for shaft deflection and/or eccentric installations
- Floating carbon bushing
- Excellent in crystallizing liquid
- Large cross-section dynamic "O" ring
- Shrunk in stationary face
- Non-clogging design
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon / Silicon Carbide, Silicon Carbide / Silicon Carbide, Tungsten Carbide / Tungsten Carbide
- Elastomers: Viton*, Buna, PTFE, Neoprene, EPR, Kalrez*, FEP, AFLAS*
- Metallurgy: 316 SS, Alloy 20, Hast B + C*
Operating Limits
Operating Limits
- Temperature: -40° to 535° Fahrenheit / -40° to 280º Celsius
- Pressure: Up to 365 PSI / 25 Bar
