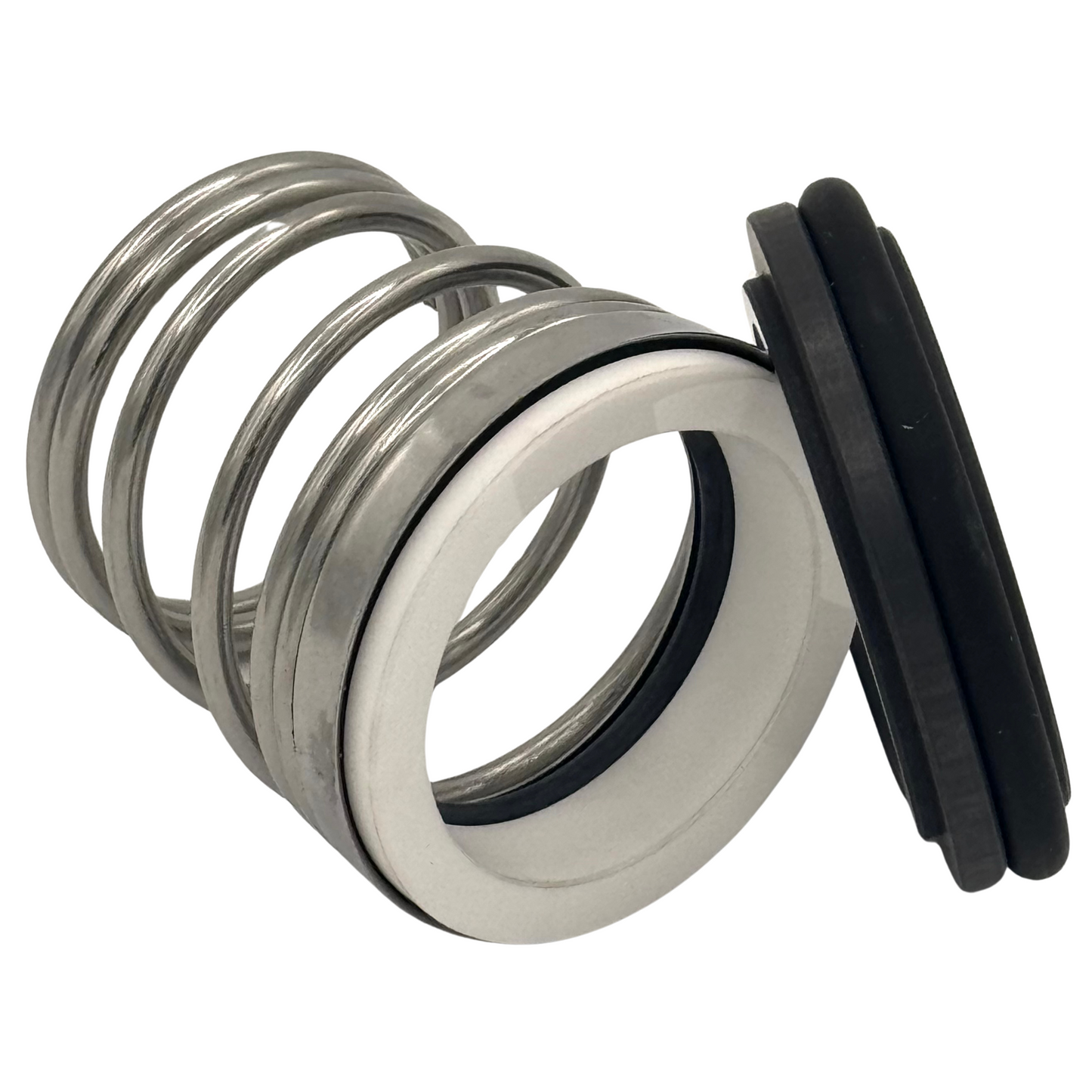

Tapered Single Spring Component Seal | ESFN
Tapered Single Spring Component Seal | ESFN
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Tapered spring transmits torque of shaft to seal
- Uni-directional – seal is dependent on rotation of shaft (please specify clockwise or counterclockwise rotation)
- Reliable O-ring pusher secondary seal design
- Rugged machined heads
- Unbalanced
Standard Materials of Construction
Standard Materials of Construction
- Faces: Ceramic, Carbon, Stainless, Silicon Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM
- Metallurgy: 304
Operating Limits
Operating Limits
- Pressure: Up to 145 PSI (10 Bar)
- Temperature: -4°F to +350°F (-20°C to 180°C)
