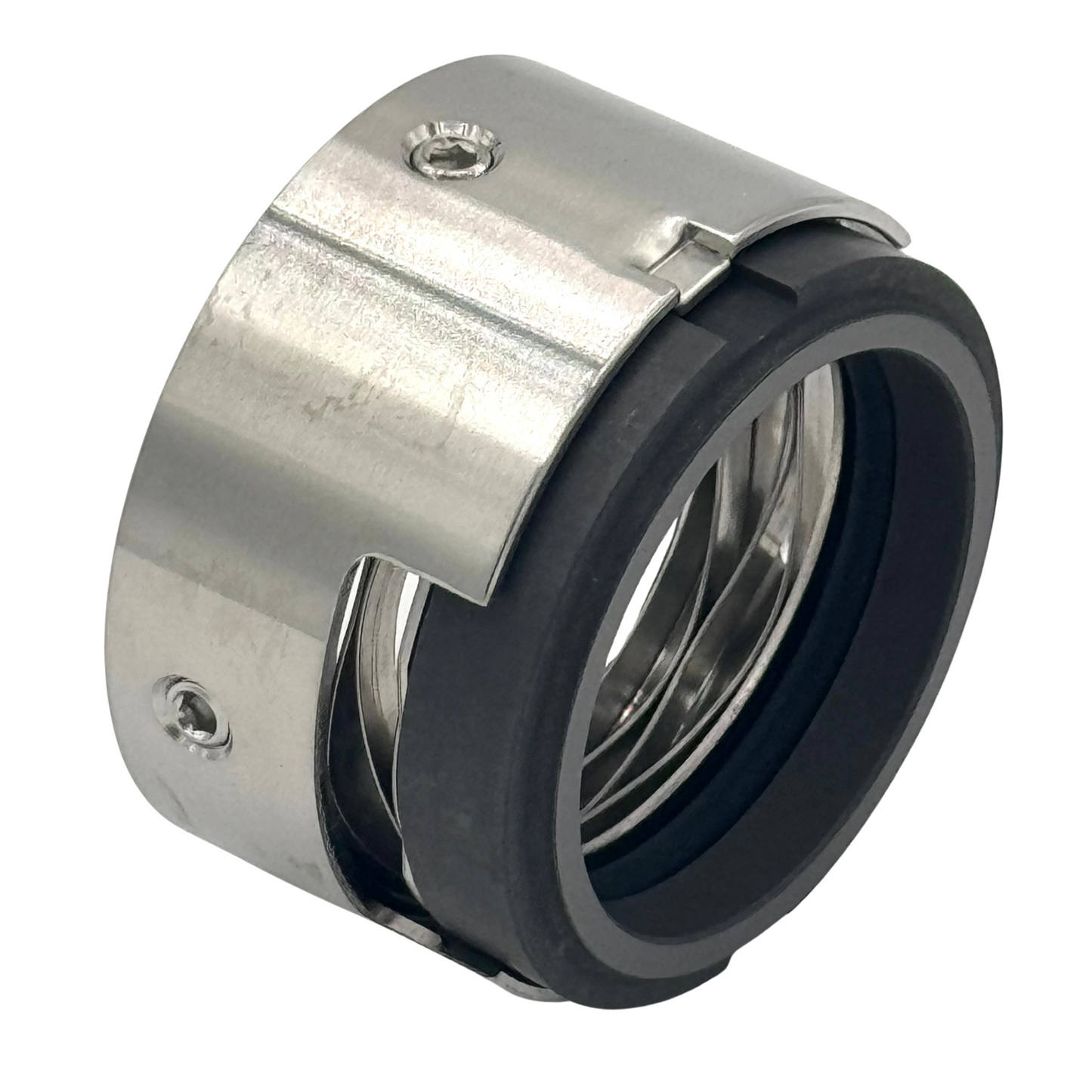

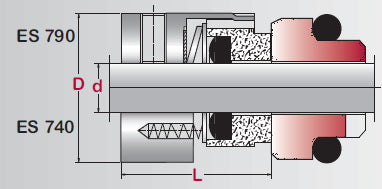

Single Unbalanced Component Seals, Continuous Wave Spring or Multi-Spring | ES790 & ES740
Single Unbalanced Component Seals, Continuous Wave Spring or Multi-Spring | ES790 & ES740
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Cost-effective single component seal
- Bi-directional
- Easy to repair and clean
- Face materials can be easily changed
- Single un-welded wave spring or multiple springs
- Built to DIN 24960
- Retainer with pumping screw available
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide
- Elastomers: Viton®, Aflas®, EPDM
- Metallurgy: 304, 316
Operating Limits
Operating Limits
- Pressure: Up to 150 PSI (10 Bar)
- Temperature: -40°F to +400°F (-40 to 205°C)
