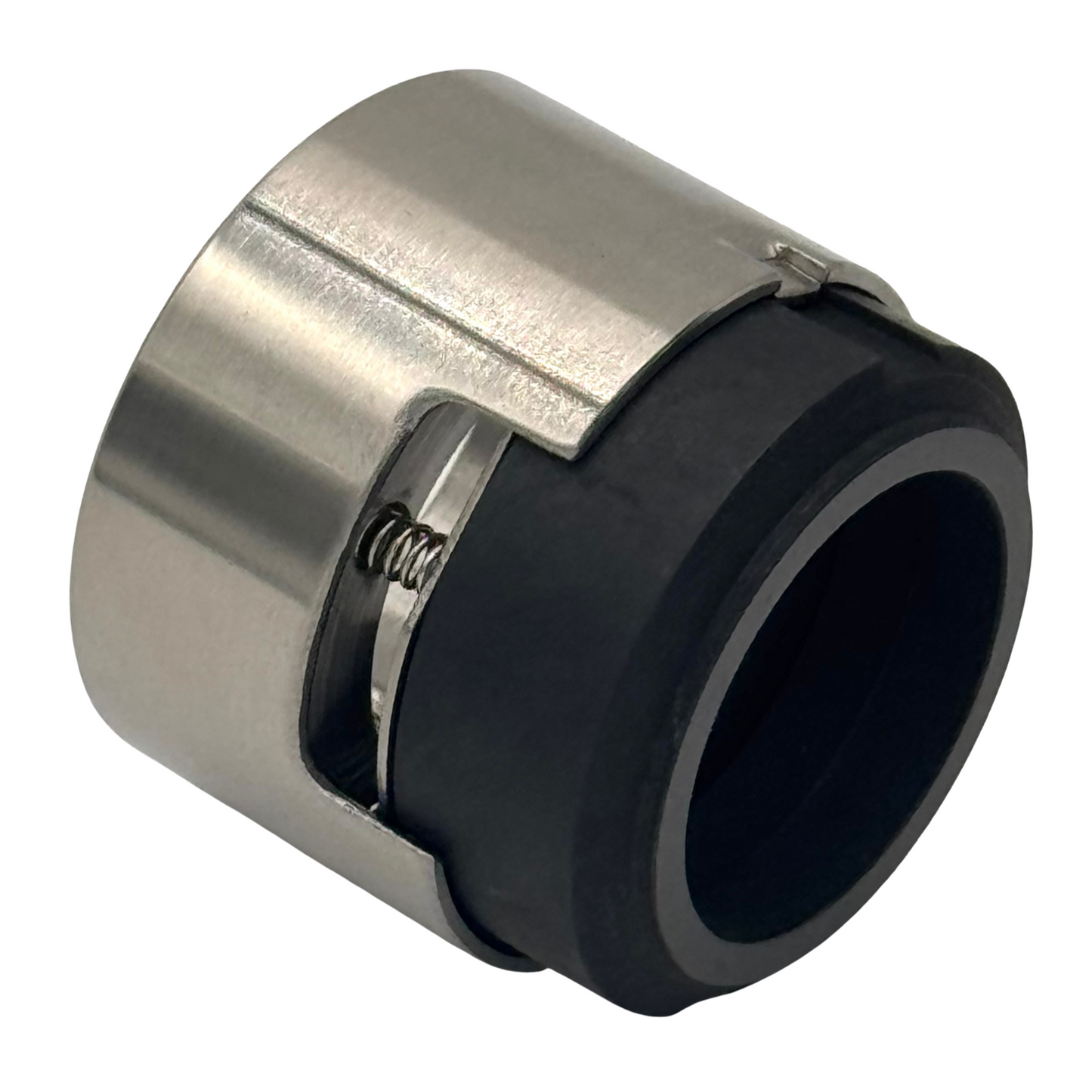

Single Balanced Component Seals | ES750 & ES799
Single Balanced Component Seals | ES750 & ES799
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Balanced design for high-pressure applications
- Bi-directional
- Easy to repair and clean
- Face materials can be easily changed
- Multiple springs (ES 750) or wave spring design (ES 799)
- Built to DIN 24960
- Retainer with pumping screw available
Standard Materials of Construction
Standard Materials of Construction
- Faces: Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM
- Metallurgy: 304, 316
Operating Limits
Operating Limits
- Pressure: Up to 350 PSI (24 Bar)
- Temperature: -40°F to +400°F (-40 to 205°C)
