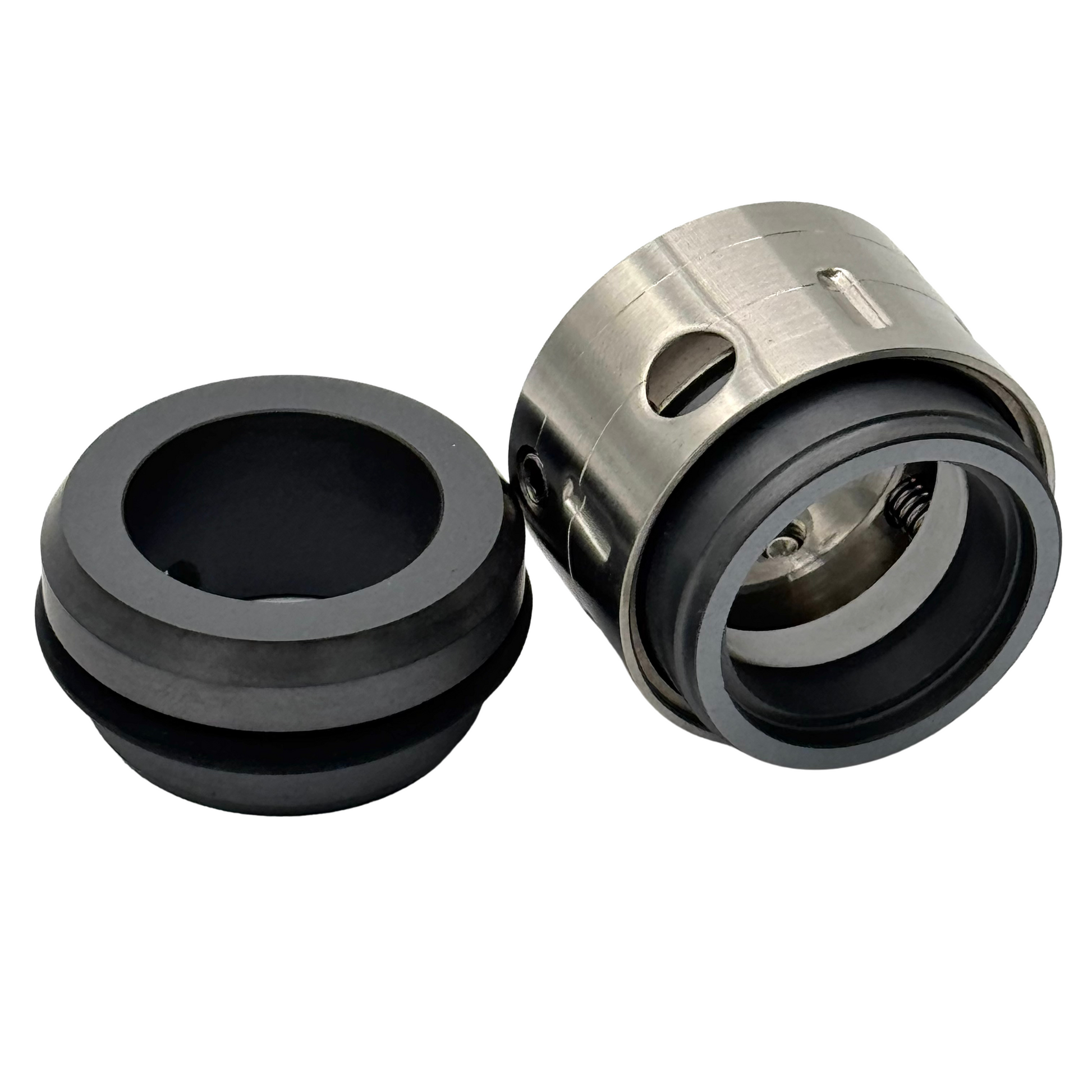

Multi-Spring, PTFE Design | ES59
Multi-Spring, PTFE Design | ES59
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Common European version of Type 9 seal

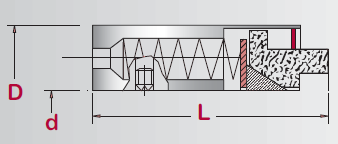

- Compact, narrow, cross-section design
- Multiple springs assure accurate face loading
- Flexible design compensates for shaft misalignment
- Variety of metals and PTFE wedge allow for a broad base of applications
- All components are held together by a snap ring in a unitized construction design
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: PTFE
- Metallurgy: 304, 316, Monel, Hastelloy C, Alloy 20
Operating Limits
Operating Limits
- Pressure: Up to 13.7 Bar (200 psi)
- Temperature: -40°C to 405°C / -40°F to 800°F (depending on materials used)
