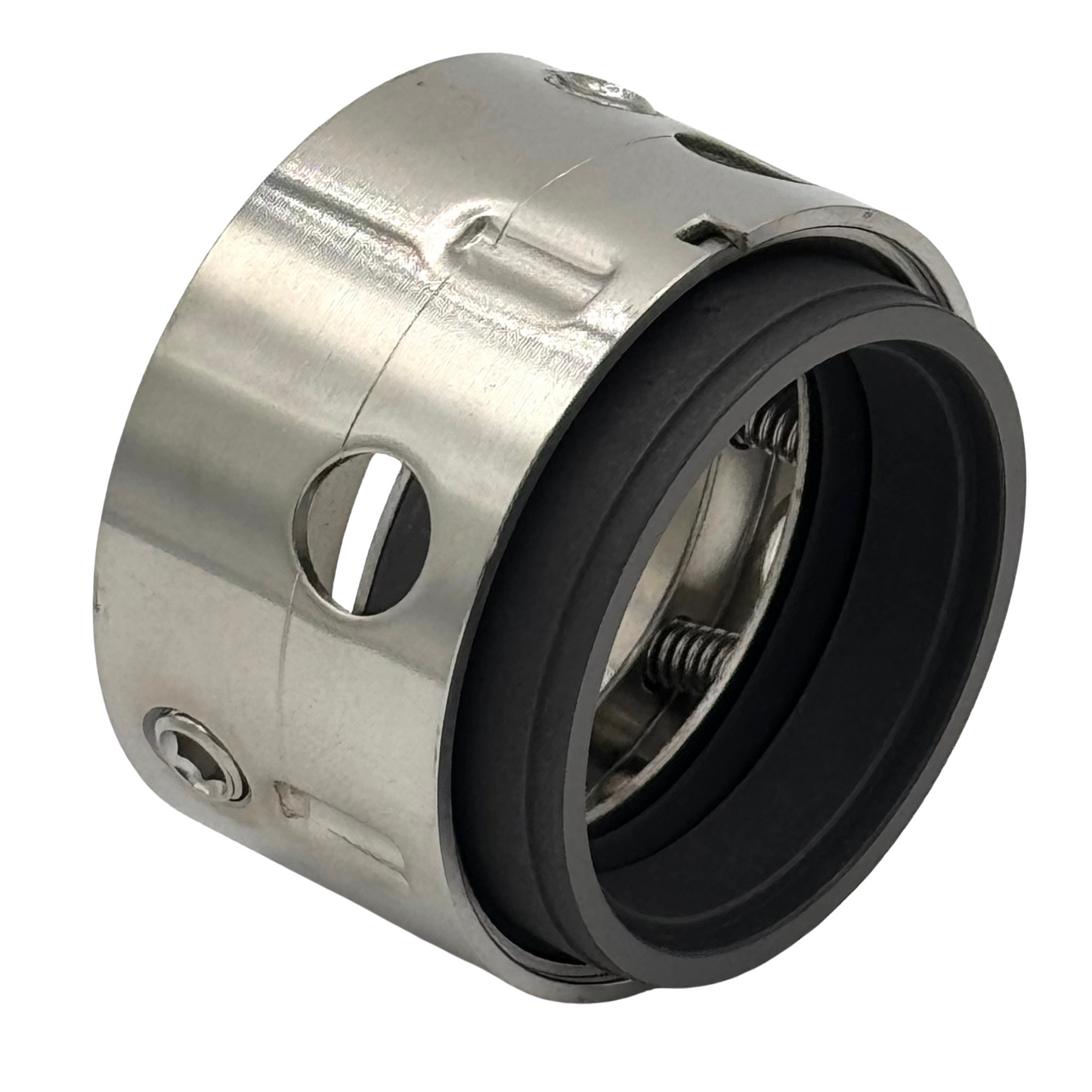

Multi-Spring, O-Ring Design | ES58
Multi-Spring, O-Ring Design | ES58
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Common European version of Type 8 seal
- Compact, narrow, cross-section design
- Multiple springs assure accurate face loading
- Flexible design compensates for shaft misalignment
- Variety of metals and O-rings allow for a broad base of applications
- All components are held together by a snap ring in a unitized construction design
- ES58 seals are available in a wide variety of elastomers for handling most industrial fluids
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM, Kalrez®
- Any standard rubber O-ring can be utilized
- Metallurgy: 304, 316, Monel, Hastelloy C, Alloy 20
Operating Limits
Operating Limits
- Pressure: Up to 13.7 Bar (200 psi)
- Temperature: -40°C to 260°C / -40°F to 500°F
