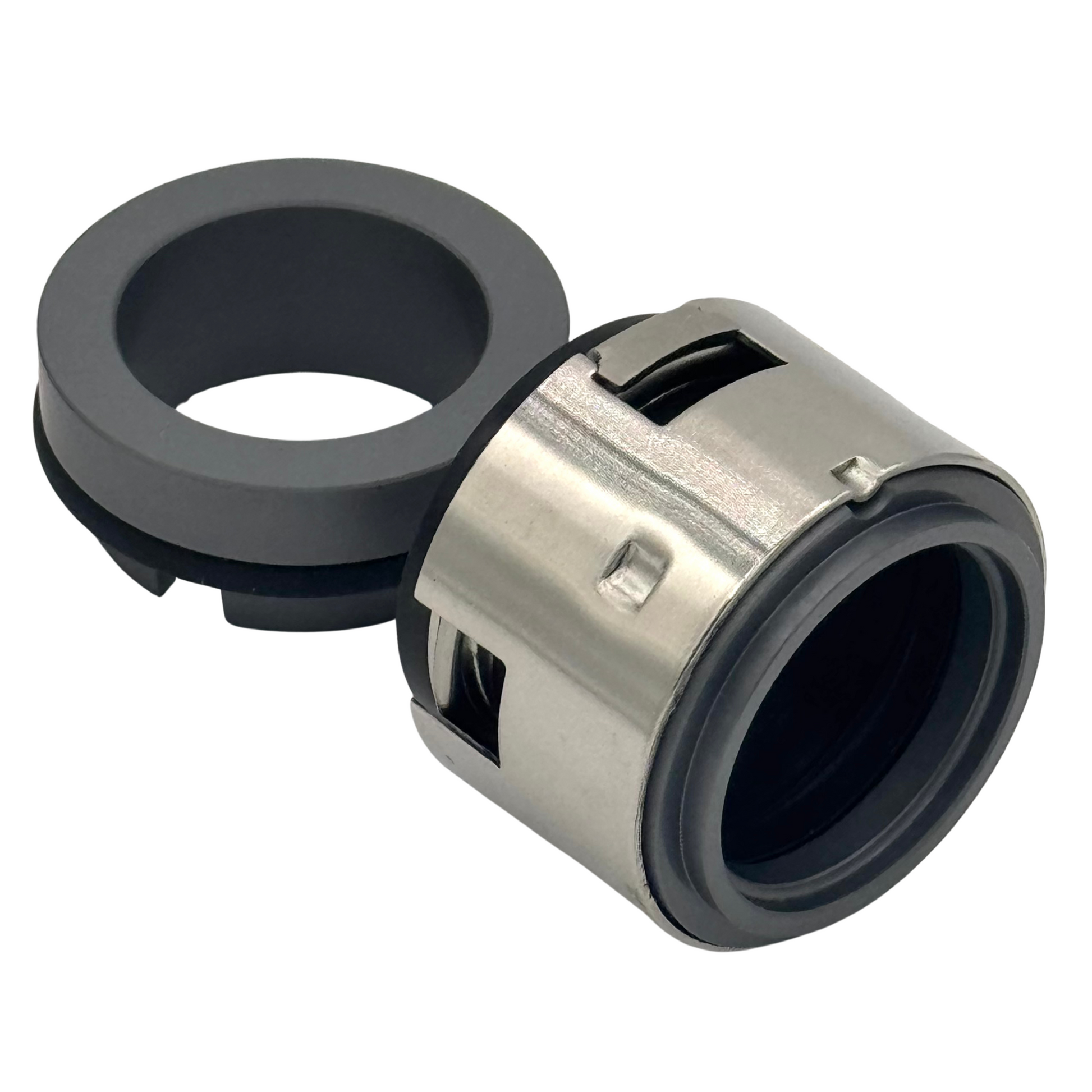

Single Spring Rubber Bellows | ES502
Single Spring Rubber Bellows | ES502
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Common European component
- Compact unitized design
- Rubber bellows drive seal
- Easy installation
- Solids don’t clog seal
- Compensates well for runout and shaft thrust
- Conforms to DIN 24960
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM
- Metallurgy: 304, 316
Operating Limits
Operating Limits
- Pressure: Up to 40 Bar (580 psi)
- Temperature: -40°C to 205°C / -40°F to 400°F (depending on materials used)
