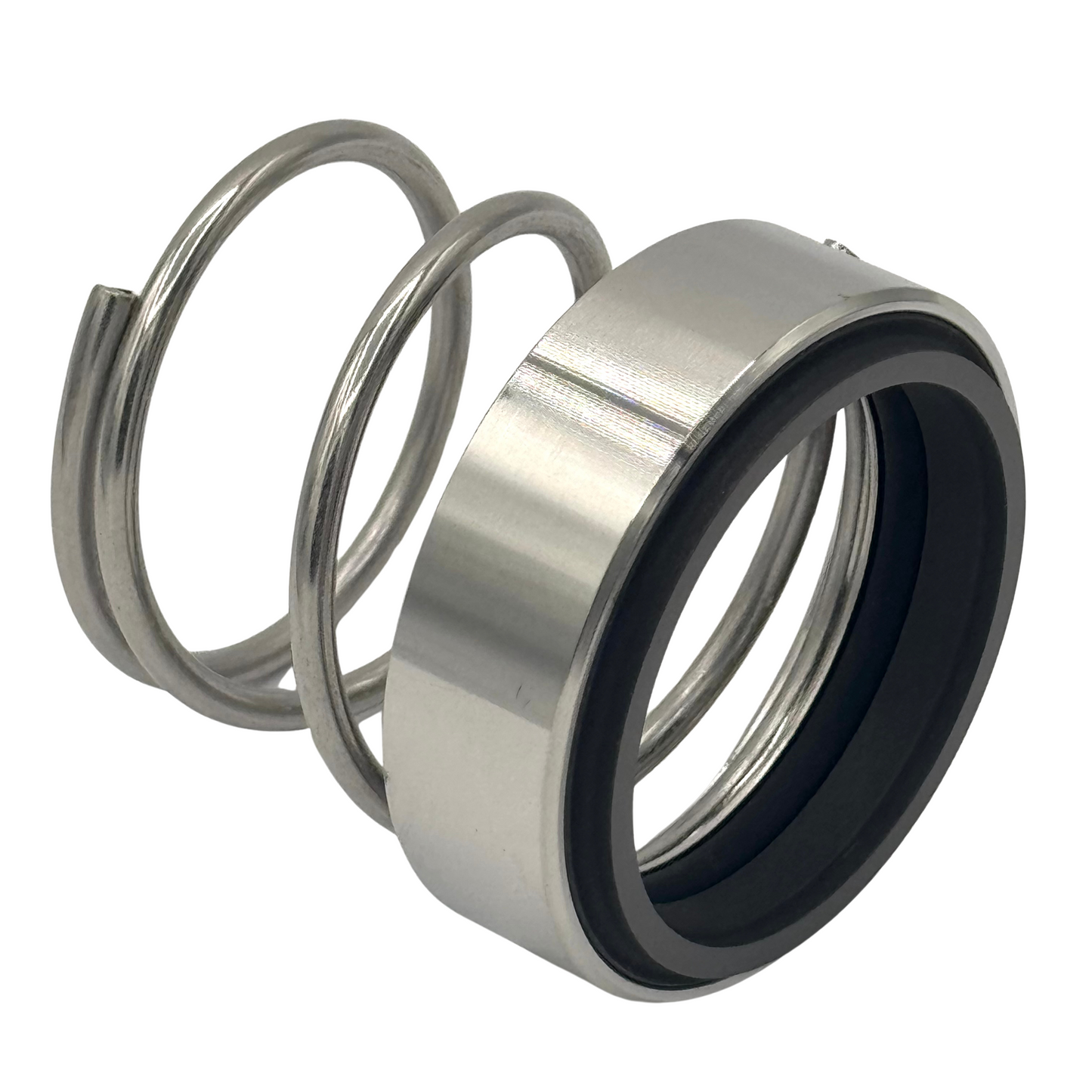

Single Coil Tapered Spring Seal | ES320
Single Coil Tapered Spring Seal | ES320
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Rugged simplicity
- Tapered spring “grabs” shaft and drives seal
- Uni-directional – Seal is dependent on rotation of shaft (please specify clockwise or counterclockwise rotation)
- Common European OEM pump seal
- Metal shrouded and protected seal faces
- Spring tabbed into rotary head
- Multiple face and elastomer choices
- Various seats available
- Very cost-effective metric alternative
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated)
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM
- Metallurgy: 304, 316
Operating Limits
Operating Limits
- Pressure: 145 psi / 10 Bar
- Temperature: -20 to 180°C / -4°F to 350°F
