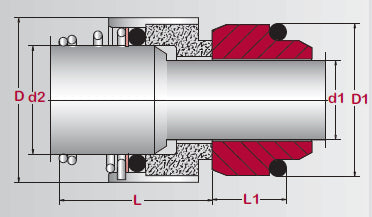

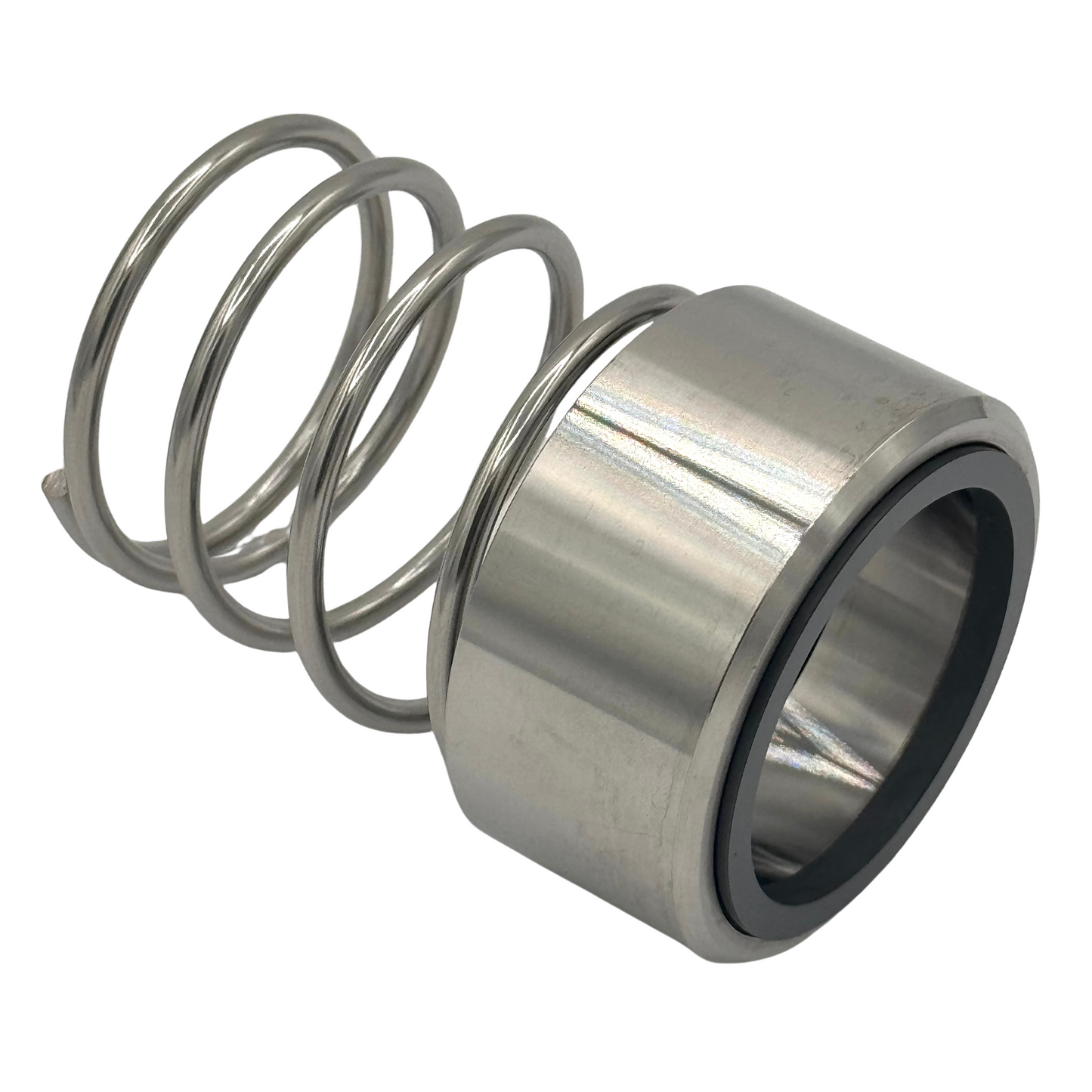

Balanced Single Coil Tapered Spring Seal | ES129
Balanced Single Coil Tapered Spring Seal | ES129
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Balanced face design for higher pressure applications
- Very cost-effective metric alternative
- Tapered spring “grabs and drives” seal
- Rugged head design
- Shrouded and protected faces
- Dependent on shaft rotation
- Various seats available
- Unidirectional – Seal is dependent on rotation of shaft (please specify clockwise or counterclockwise rotation)
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide
- Elastomers: Viton®, Aflas®, EPDM
- Metallurgy: 304, 316
Operating Limits
Operating Limits
- Pressure: 360 psi / 25 Bar
- Temperature: -50 to 220°C / -4°F to 350°F
