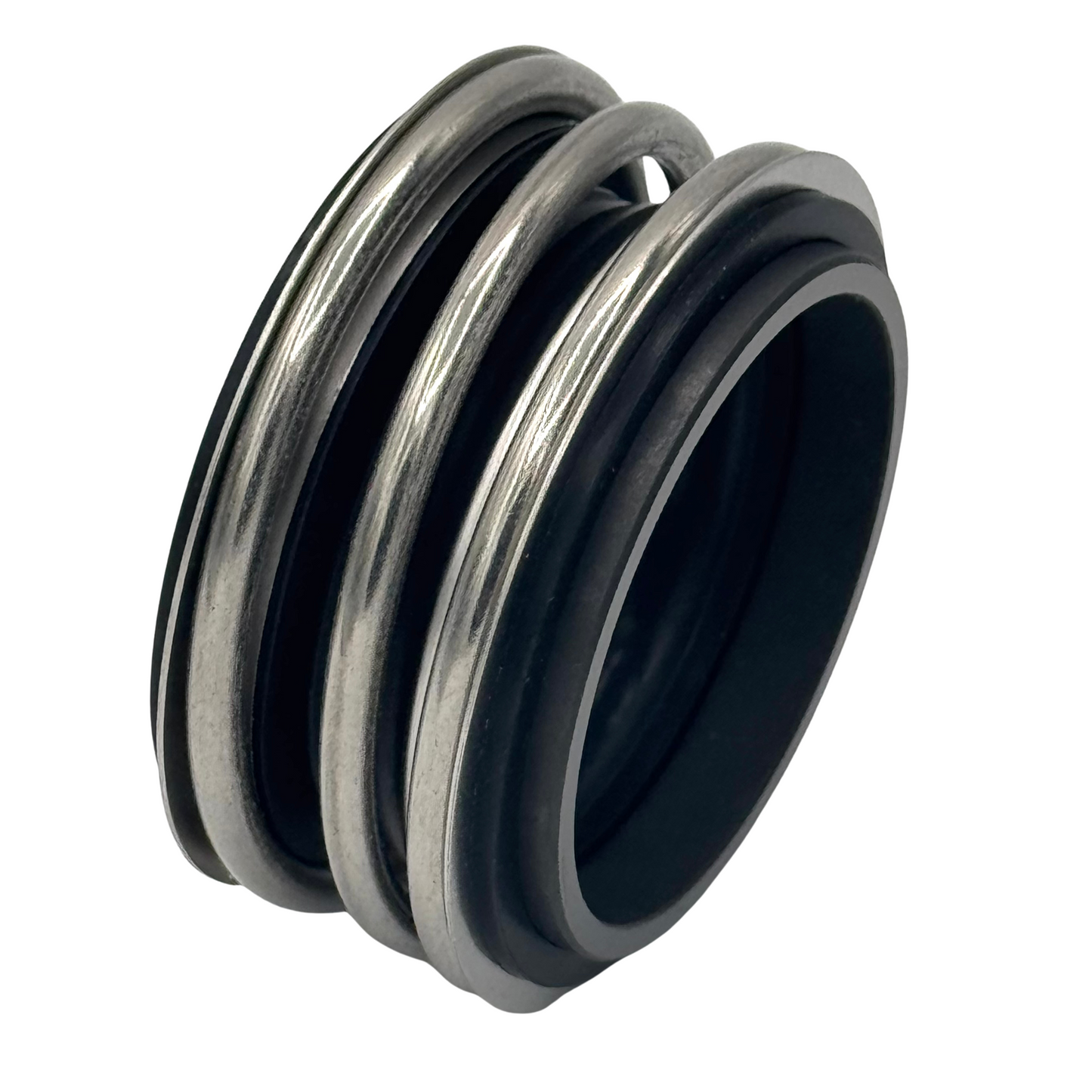

Single Spring Rubber Bellows Shaft Seal | ES100

The world’s most common seal for metric shafts

• Very economical seal alternative
• Compact rugged design
• Seal faces are driven via the spring
• No torsional stress on the bellows
• Seal faces are encapsulated and protected in rubber bellows
• Large rubber cross-sections and “surface grab” minimize tears and enhance seal life
• Faces match with several common seat designs
• Three common operating lengths for each shaft size
• Operates independently of shaft rotation
• Excellent in fluids with high solid content

• Faces: Carbon Graphite (Resin Impregnated), Antimony Impregnated Carbon, Silicon Carbide, Tungsten Carbide

Elastomers:

• Buna, Viton®, Neoprene, EPDM

Metallurgy:

• 304, 316, Monel

• Pressure: to 225 PSI / 15 BAR
• Temperature: -40°F to +300°F / -40°C to +150°C
