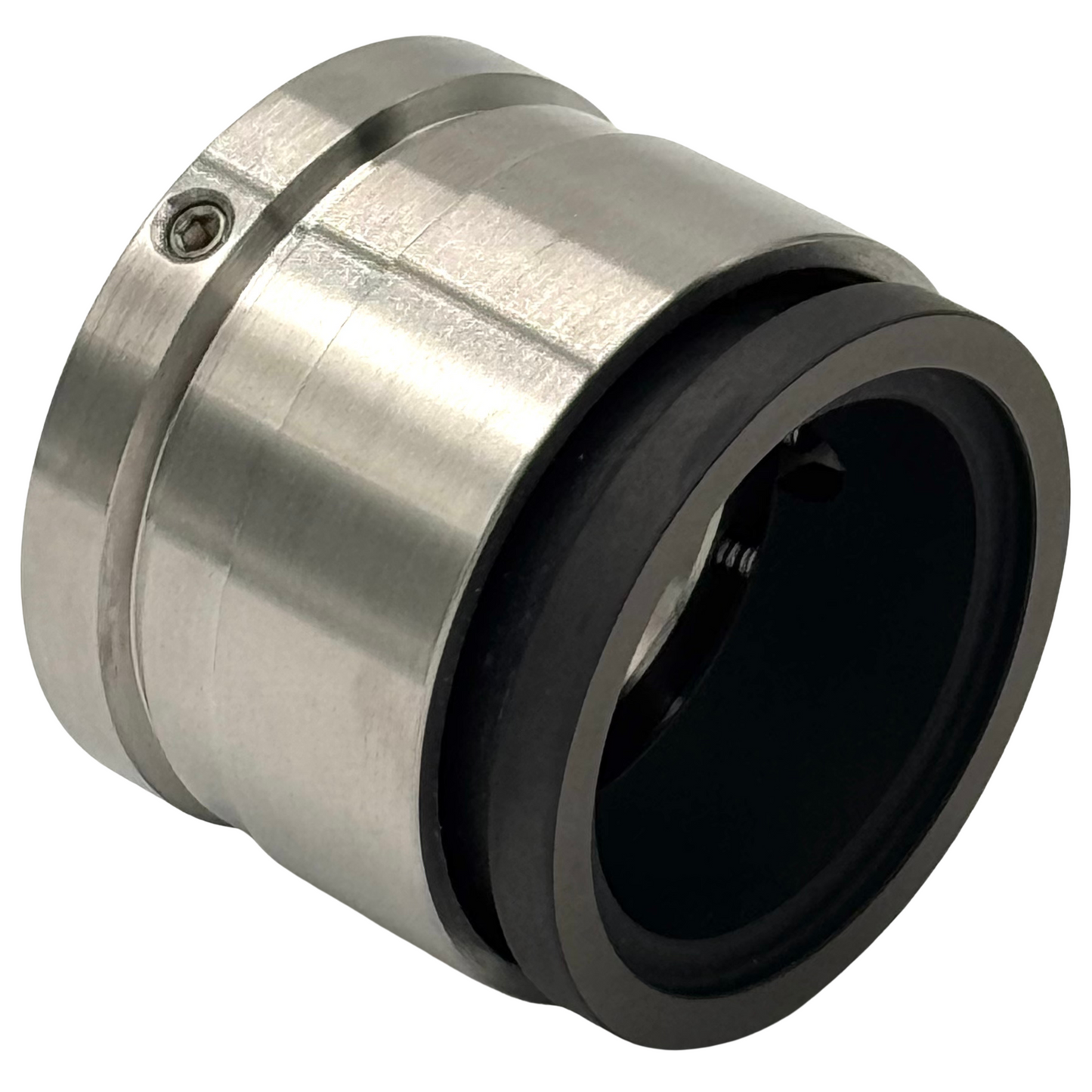

Single Rotating Multiple Spring Component Seal | CP8
Single Rotating Multiple Spring Component Seal | CP8
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Multiple springs yield an even face load
- Rugged monolithic seal face design
- No fretting of shaft sleeves
- Narrow cross-section fits most industry pumps
- Springs are out of the product
- Dynamic O-ring moves to clean surfaces as it wears
- Balanced seal design withstands higher pressures
Standard Materials of Construction
Standard Materials of Construction
-
Faces:
- Rotary: Carbon (Resin), Antimony-Impregnated Carbon, Tungsten Carbide, Silicon Carbide (Reaction Bonded & Sintered Alpha)
- Stationary: Silicon Carbide (Reaction Bonded & Sintered Alpha), Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM, Kalrez®, Chemraz®
- Metallurgy: 316, Monel, Hastelloy-C®
Operating Limits
Operating Limits
- Pressure: Up to 300 PSI / 20 Bar
- Temperature: -40°F to +400°F / -40°C to +205°C
