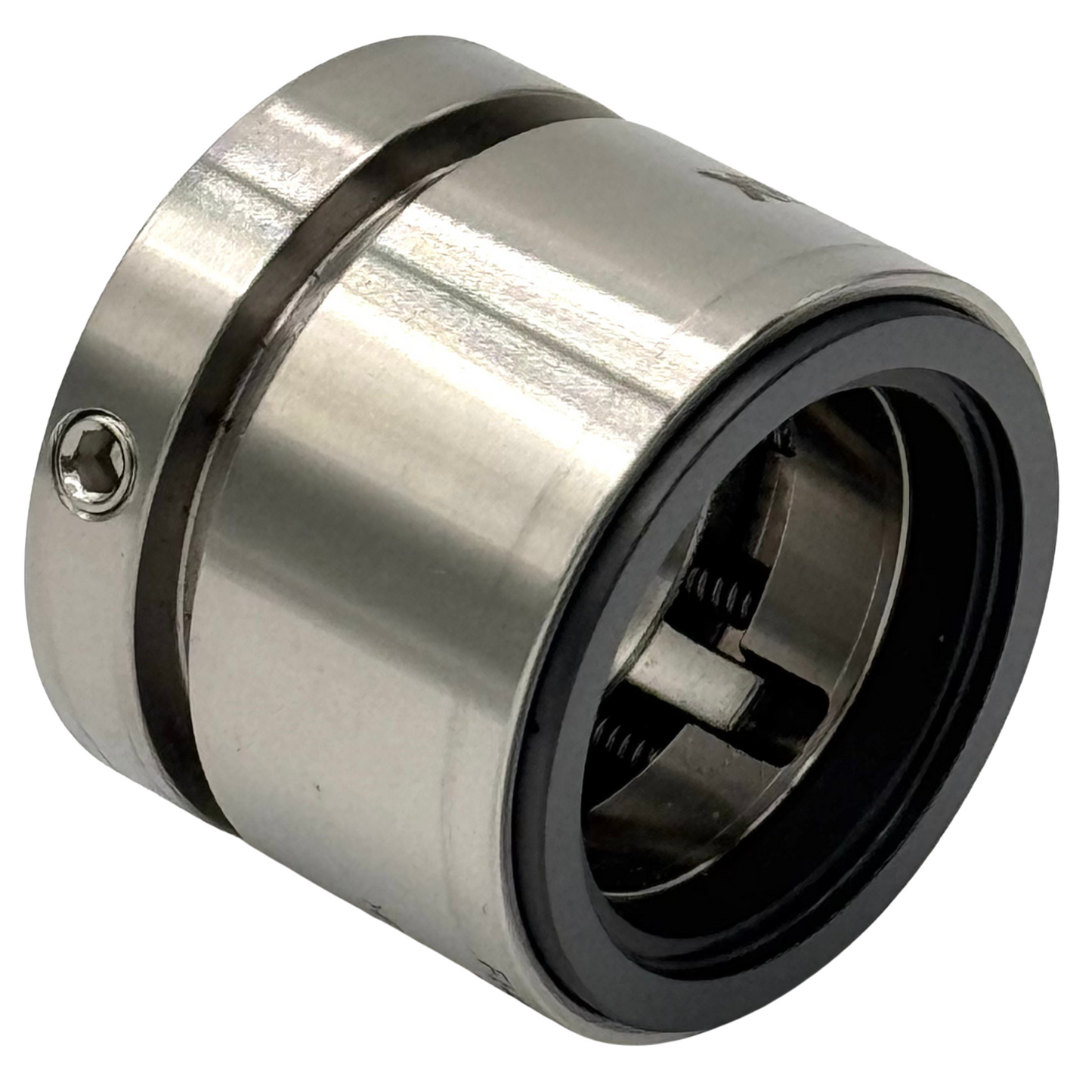

Multi-Spring Component Seal | CP1
Multi-Spring Component Seal | CP1
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Non-clogging multi-spring design
- Springs protected from the product
- Rugged drive lugs, no drive pins
- Balanced
- Bi-directional rotation
- No shaft fretting
- Excellent in moderate slurries and crystallizing solutions
- Fits ANSI, DIN, API pumps
- Unitized compression unit
- Compatible with common "O" ring groove seats
- Retained face
- Metric versions
- Available for sterile applications
- Available in cartridge design
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM, Kalrez®
- Metallurgy: 316, Alloy 20, Hast-C
Operating Limits
Operating Limits
- Pressure: 25 Bar / 360 PSI
- Temperature: -40°C to 205°C / -40°F to 400°F (depending on materials used)
