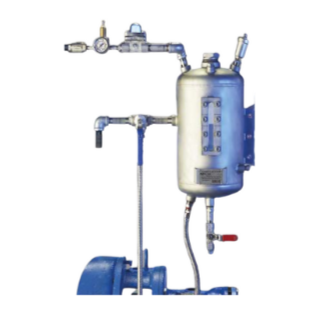

Barrier Fluid System | BF-PW

A straightforward, easily maintained seal support system, using plant water to provide lubrication to abrasive seal applications.

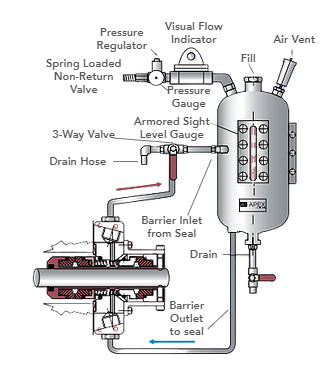

Features

• System is piped directly to plant water source
• Easy-to-read flow indicator to visually monitor feed water supply
• Water supply regulator and pressure gauges are standard
• Non-return valve standard to protect backflow to water supply
• Flexible metal hoses connect directly to seal ports
• Air vent valve for safe pressure management in vessel
• Fill and drain valves for easy maintenance

Benefits

• Eliminates expensive constant flush and wasteful discharge while lubricating seal faces
• Water consumption is drastically reduced, saving customers thousands of dollars annually
• Seal faces are provided with clean, reliable lubrication of plant water, enhancing cooling and reducing face wear from abrasive grit
• Flow indicator gives immediate visual alert of seal failure

Specifications

• Design Pressure: 261 PSI
• Max Working Pressure: 174 PSI
• Max Working Temperature: 302°F
• Capacity: 3 Gallons
• Weight: 25 lbs
