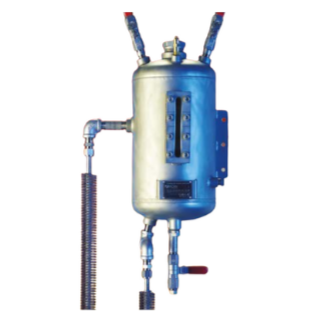

Barrier Fluid Systems | BF-HW

Reliable seal support system for difficult, hot water applications.

Features

• ASME welded vessel safely contains the pressurized high-temperature system
• Finned seal lines
• Welded armored sight gauge for easy fluid level monitoring

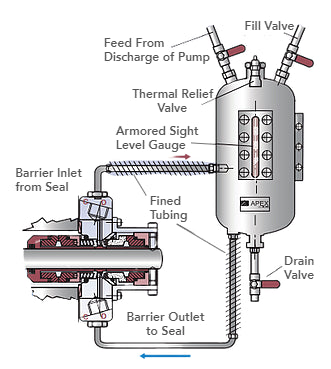

• Direct controlled piping from the pump's discharge
• High-pressure thermal relief valve for easy maintenance

Benefits

• Used with standard double cartridge seals
• System cools sealing area, specifically the seal faces
• Uses pump discharge pressure to "charge" the vessel
• Internal cooling coils draw heat from the closed-loop system
• "Finned" seal lines extract heat from the system
• Every subsequent system loop further reduces temperature, enhancing circulation through thermal siphoning
• Reduced fluid temperature helps maintain the fragile film of fluid that lubricates critical seal faces
• Often replaces expensive heat exchangers

Specifications

• Design Pressure: 261 PSI
• Max Working Pressure: 174 PSI
• Max Working Temperature: 302°F
• Capacity: 3 Gallons
• Weight: 25 lbs

Ask us about our Cyclone Separator!
