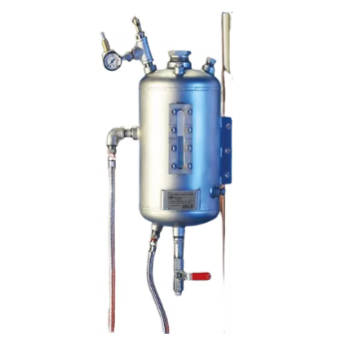

Barrier Fluid Systems | BF-52/53

Standard seal support system for common API Plans 52 and 53.

The industries most common barrier/buffer system reservoir for pressurized (API Plan 53) and unpressurized (API Plan 52) sealing requirements.

Features

• Industry-standard fluid support system for double mechanical seals
• 304 or 316 stainless steel construction
• Internal cooling coils enhance thermal convection to reduce heat at the seal faces
• Port for alarm switches (high/low level)
• Armored sight gauge to monitor proper barrier fluid level

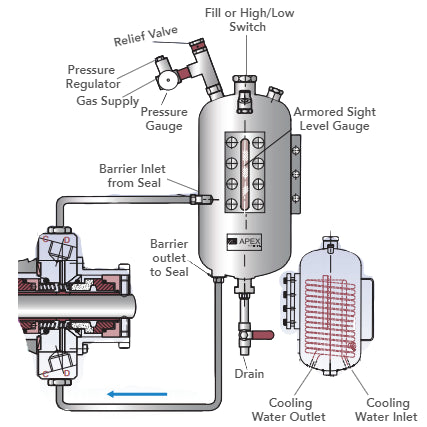

• All necessary connections for pressurization, venting, fill and drain seal lines, and level alarms
• Easy mounting and installation

Benefits

• Reliable barrier between hazardous and toxic fluids and the environment
• Provides critical lubrication to double seals during operation
• Accommodates pressurized (API Plan 53) or non-pressurized (API Plan 52) requirements
• Ensures safety of plant personnel and the environment
• Compatible with many different critical applications
• Adaptable to various process pressures, temperatures, and aggressive media
• Enhanced cooling in the seal area

Specifications

• Design Pressure: 261 PSI
• Max Working Pressure: 174 PSI
• Max Working Temperature: 302°F
• Capacity: 3 Gallons
• Weight: 25 lbs

Ask us about our Barrier Fluid System accessories!
