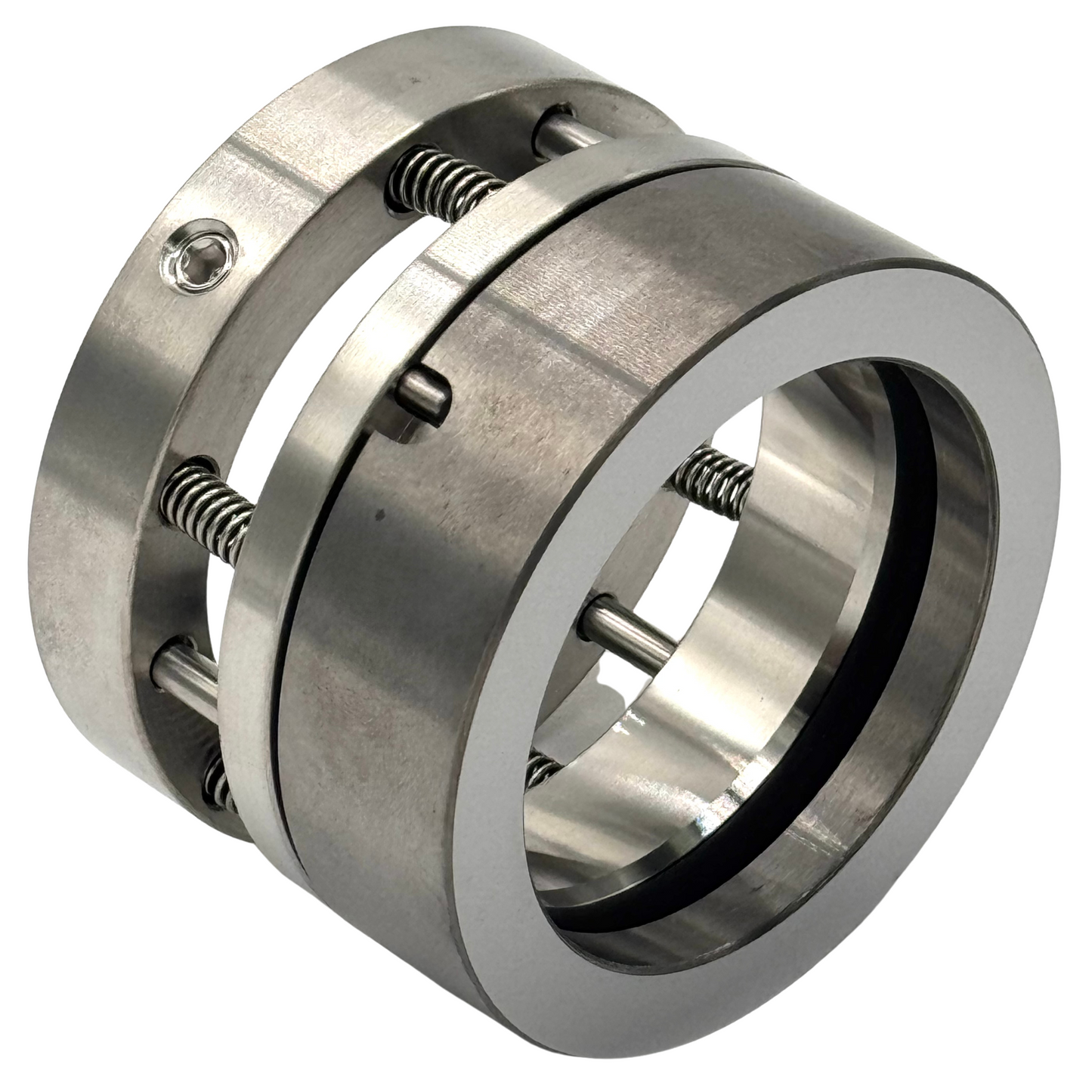

Single Rotating Multi-Spring Component Seal | ARO
Single Rotating Multi-Spring Component Seal | ARO
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Time-tested, heavy-duty component seal
- Multiple springs yield an even face load
- Rugged seal face design
- Large cross-section increases durability
- Open spring design to prevent solids entrapment
- Self-centering seal ring
- Floating stationary design is resistant to distortion
Standard Materials of Construction
Standard Materials of Construction
-
Faces:
- Rotary: Ceramic, Tungsten Carbide, Silicon Carbide
- Stationary: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM, PTFE “V” Rings
- Metallurgy: 316, Monel, Hastelloy-C®
Note: The carbon (soft) face is stationary and has many different configurations depending on the pump. Please call the factory for a data sheet to determine exact seat dimensions.
Operating Limits
Operating Limits
- Pressure: Up to 300 PSI / 20 Bar
- Temperature: -40°F to +500°F / -40°C to +260°C
