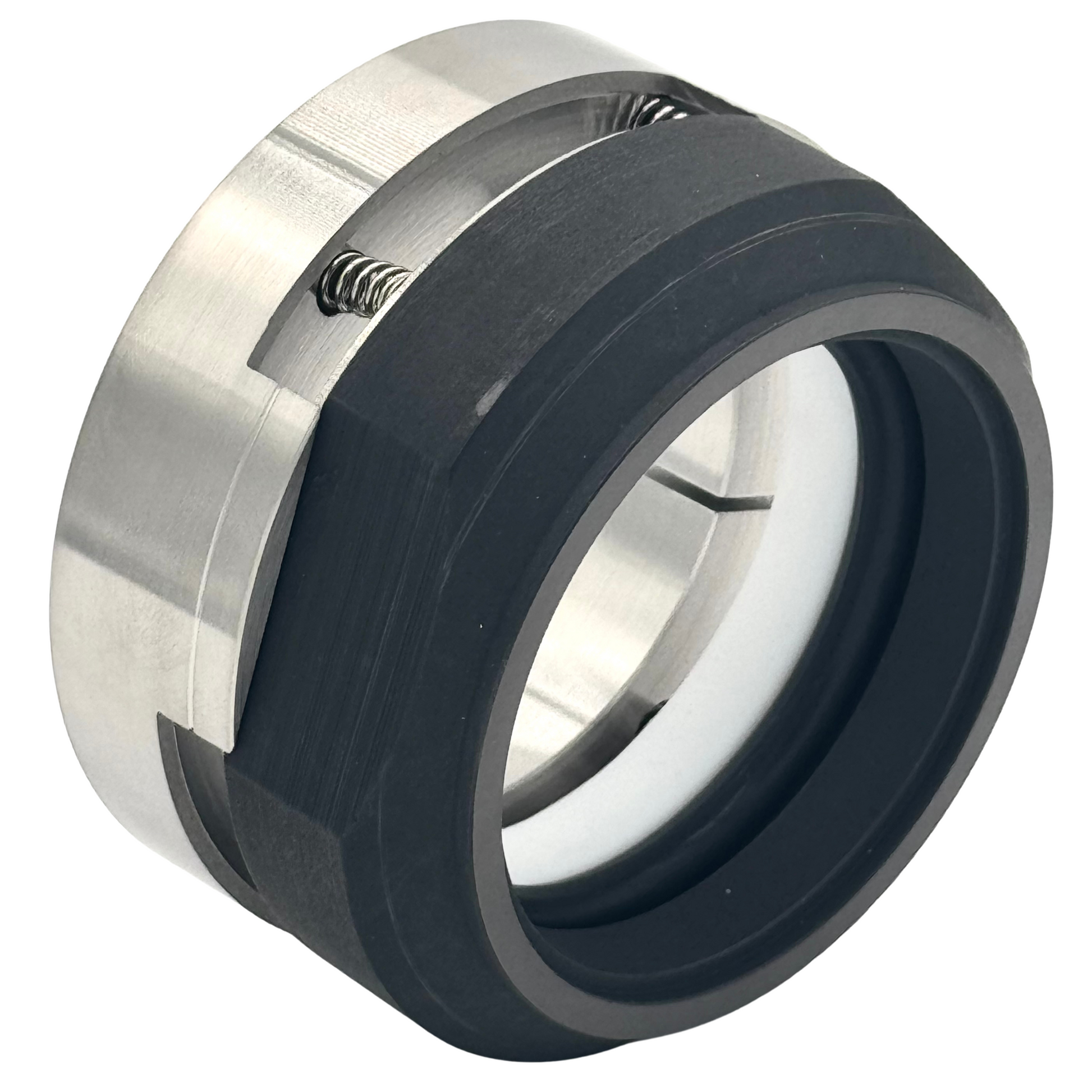

Single Stainless Multi-Spring Outside Seal | ACX
Single Stainless Multi-Spring Outside Seal | ACX
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Outside seal design for extreme corrosive applications
- Only inert materials exposed to the product
- All metal parts out of the fluid
- Clamp style drive – no set screws (for non-metallic shafts)
- Hastelloy C Springs standard
- Multiple face and elastomer choices
- Many clamp style sets available
- Easy installation
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Silicon Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM, Kalrez®, Chemraz®
- Metallurgy: 304, 316, Monel, Hastelloy C®, Alloy 20
Operating Limits
Operating Limits
- Pressure: Up to 150 PSI
- Temperature: -40°F to +400°F
