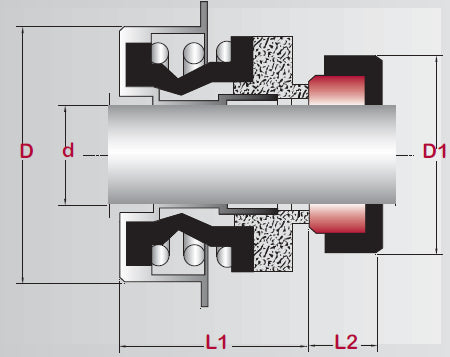

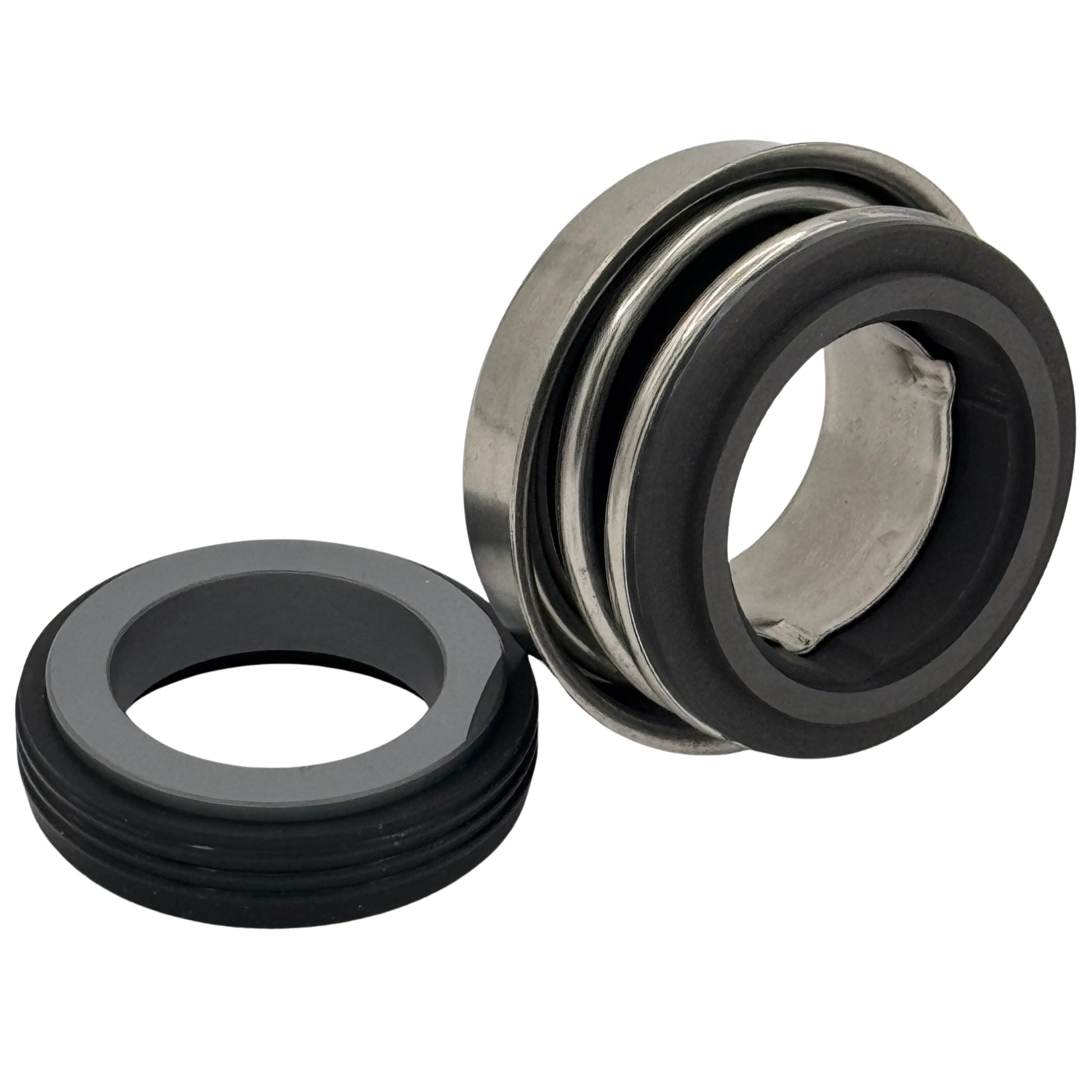

Single Spring Elastomer Bellows Seal | A6A

Single Spring Elastomer Bellows Seal | A6A

Need Help? Call 888-730-2739 or 802-524-7100

Features & Benefits

  • Full convolution rubber bellows gives maximum flexibility in compensating for shaft movement
  • Coil spring gives consistent face loading
  • Seal face torsional movement is restricted by anti-rotation, dent, and groove
  • Pre-assembled for easy installation
  • Common to many commercial and domestic pumps

Standard Materials of Construction

  • Faces: Carbon Graphite (Resin Impregnated), Phenolic Carbon, Silicon Carbide
  • Elastomers: Buna, Viton®, Neoprene, EPDM
  • Metallurgy: 304, 316

Operating Limits

  • Pressure: Up to 75 PSI
  • Temperature: -40°F to +400°F
  • *All industry standard “PS” numbers are available. Just provide us with the “PS” number required or one used on previous orders.
