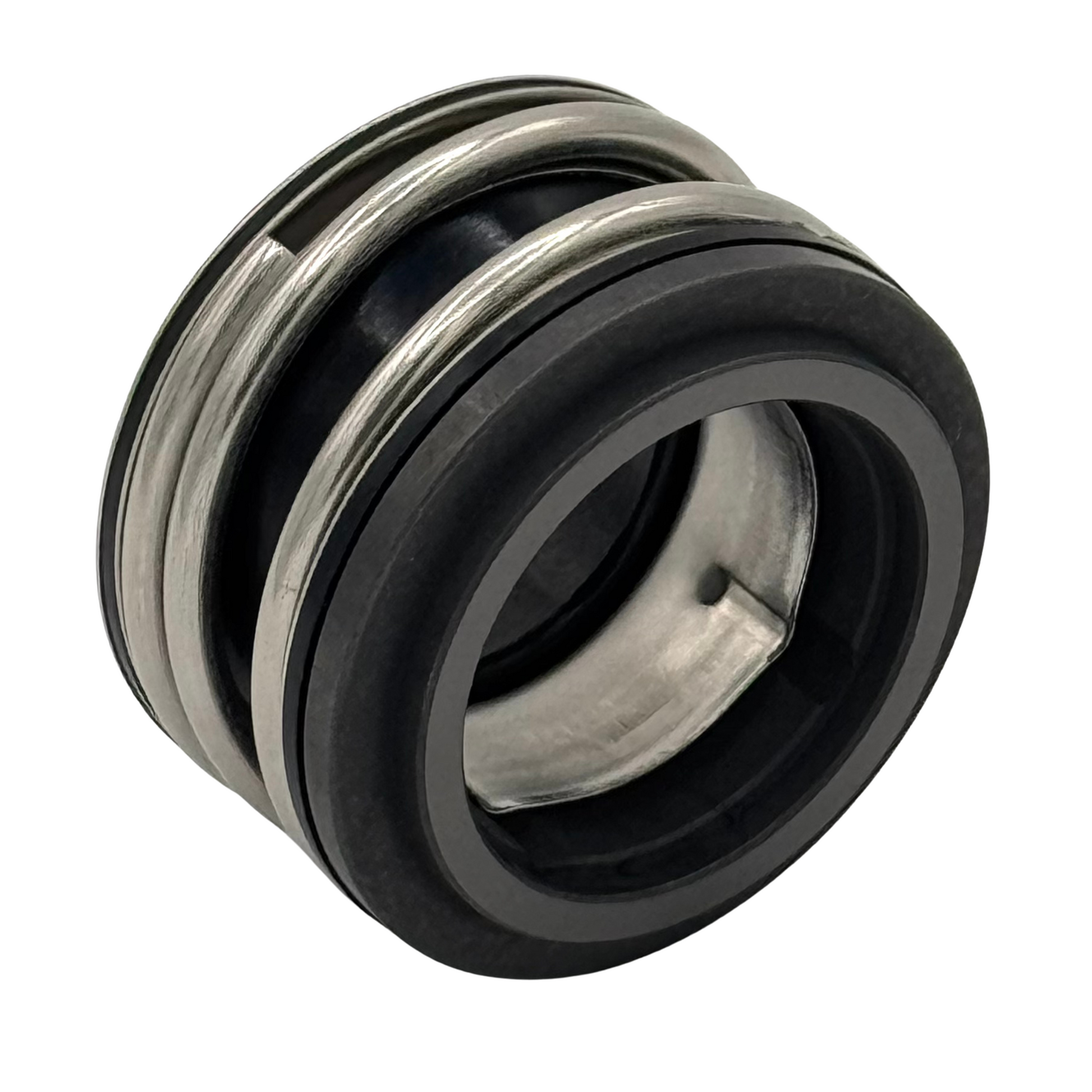

Single Spring Elastomer Bellows Seal | A6
Single Spring Elastomer Bellows Seal | A6
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Single spring, elastomer bellows seal
- Compact
- Full convolution bellows gives maximum flexibility
- Pre-assembled for easy installation
- Common to many commercial and domestic pumps
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Phenolic, Carbon, Silicon Carbide
- Elastomers: Buna, Viton®, Neoprene, EPDM
- Metallurgy: 304, 316
Operating Limits
Operating Limits
- Pressure: Up to 75 PSI / 5.2 Bar
- Temperature: -40°F to +400°F
