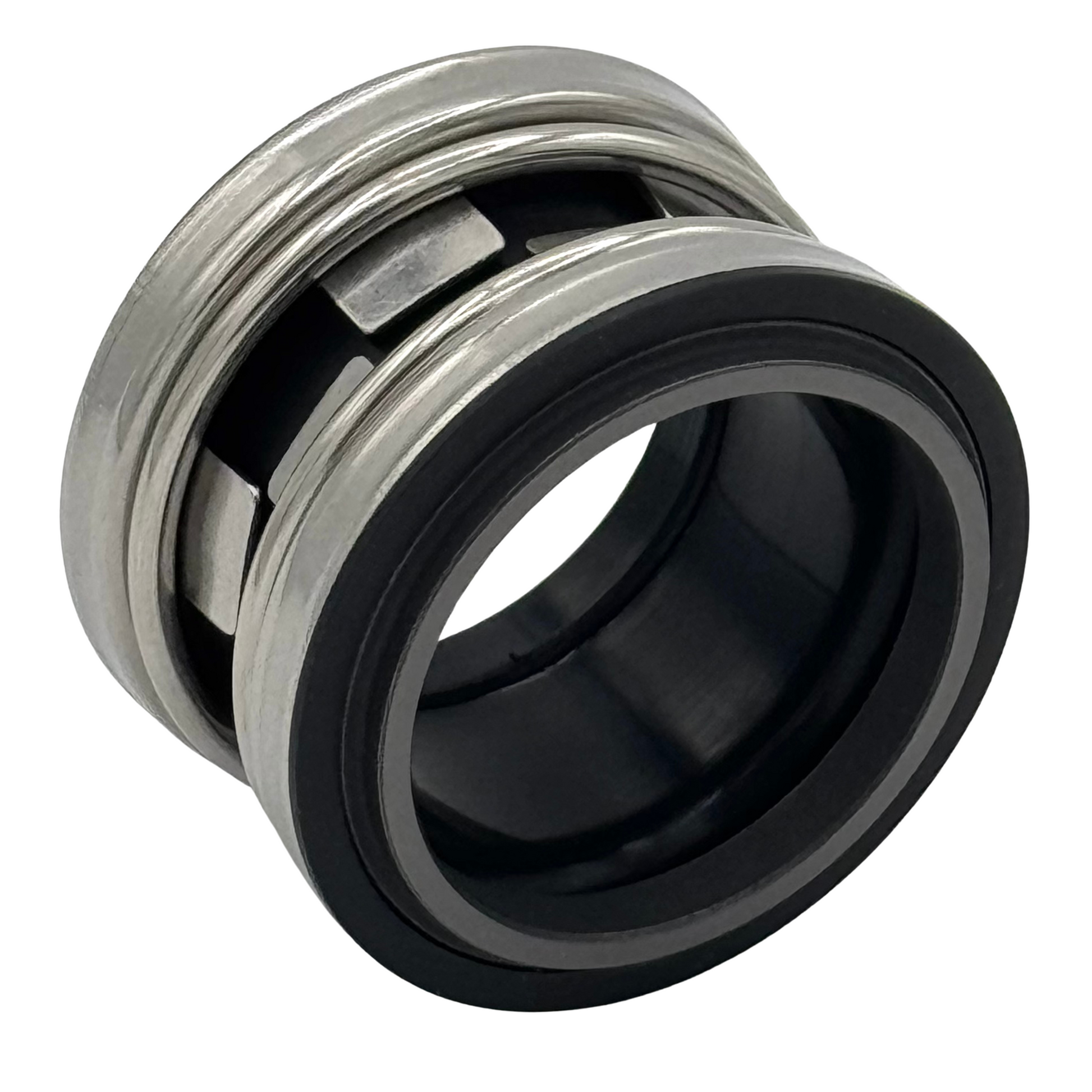

Single Spring Elastomer Bellows Seal | A210
Single Spring Elastomer Bellows Seal | A210
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Full Convolution Bellows design helps compensate for face wear
- Bi-directional
- Interlocking drive band design allows for positive drive
- Design fits DIN24960
- Interference fit of seal face minimizes effects of face stick
- Equivalent to John Crane® Type 2100, US Seal® Type G
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM
- Metallurgy: 304, 316, Monel
Operating Limits
Operating Limits
- Pressure: Up to 150 PSI
- Temperature: 20°F to +300°F
