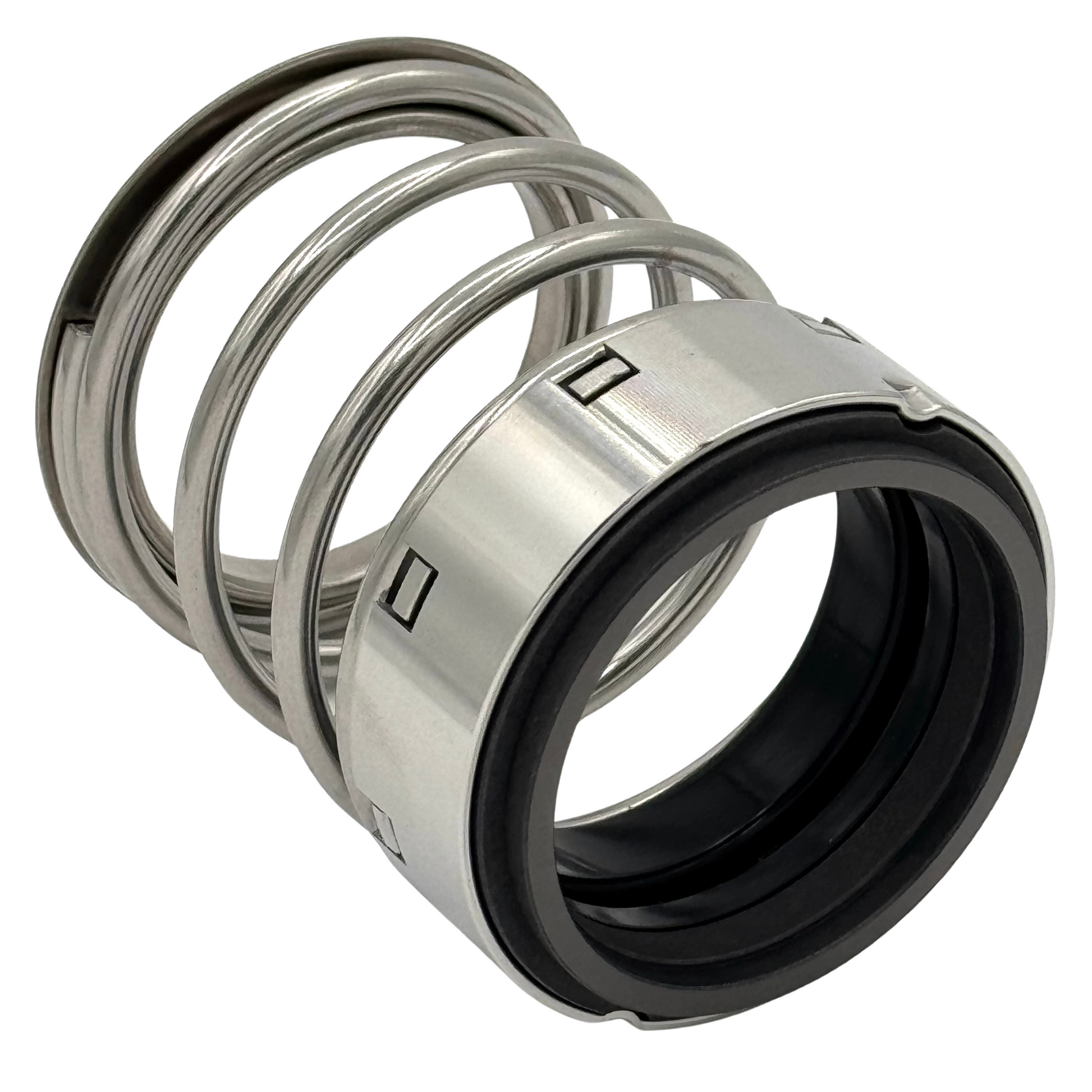

Single Spring Bellows with Machined Head | A1M
Single Spring Bellows with Machined Head | A1M
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Machined head is standard to withstand more rigorous conditions
- Bellows design enhances alignment capabilities and helps compensate for face wear
- Bi-directional
- Torque of pump shaft drives through machined drive band and notches
- Rugged single spring minimizes clogging in stuffing box
- 316 SS Standard Material to withstand a wider variety of aggressive fluids
- Multiple face and elastomer choices
- All styles of set screw lock collars available to improve setting and drive reliability
- Aflas bellows available for all sizes
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM
- Metallurgy: 304, 316, Monel
Operating Limits
Operating Limits
- Pressure: Up to 200 PSI / 13.8 Bar
- Temperature: -40°F to +400°F / -40°C to +204°C
