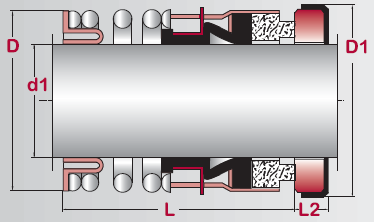

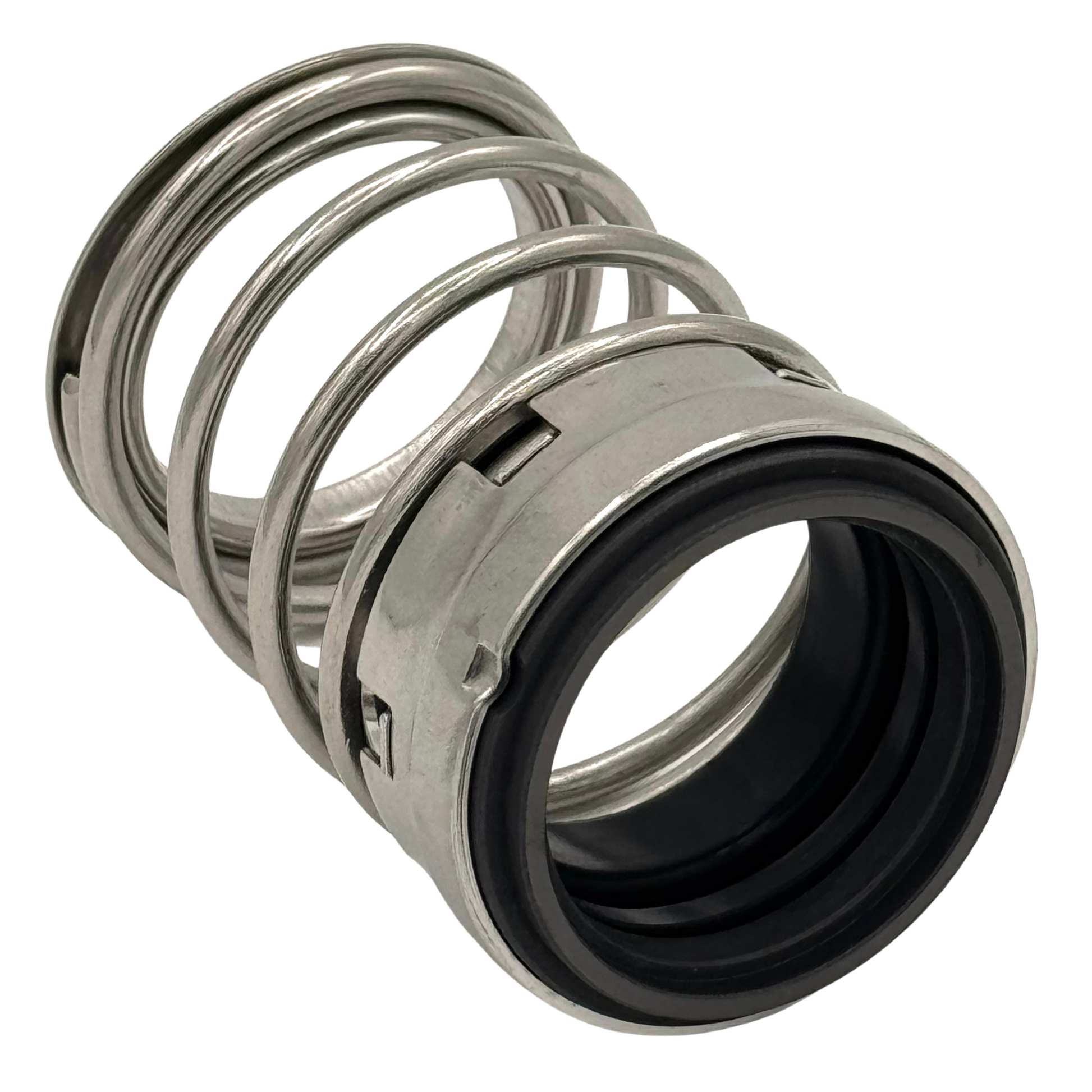

Single Spring Elastomer Bellows Seal | A1
Single Spring Elastomer Bellows Seal | A1
Couldn't load pickup availability
Need Help? Call 888-730-2739 or 802-524-7100
Features & Benefits
Features & Benefits
- Bellows design helps compensate for face wear
- Bi-directional
- Torque of pump shaft drives through drive band and notches
- Rugged single spring
- Multiple face and elastomer choices
Standard Materials of Construction
Standard Materials of Construction
- Faces: Carbon Graphite (Resin Impregnated), Antimony-Impregnated Carbon, Silicon Carbide, Tungsten Carbide
- Elastomers: Buna, Viton®, Aflas®, Neoprene, EPDM
- Metallurgy: 304, 316, Monel
Operating Limits
Operating Limits
- Pressure: Up to 200 psi (13.8 Bar)
- Temperature: -40°F to +400°F
- *All industry standard “PS” numbers and seat styles are available
- Machined Head A1 available
- A1B Balanced seals available for high-pressure applications
